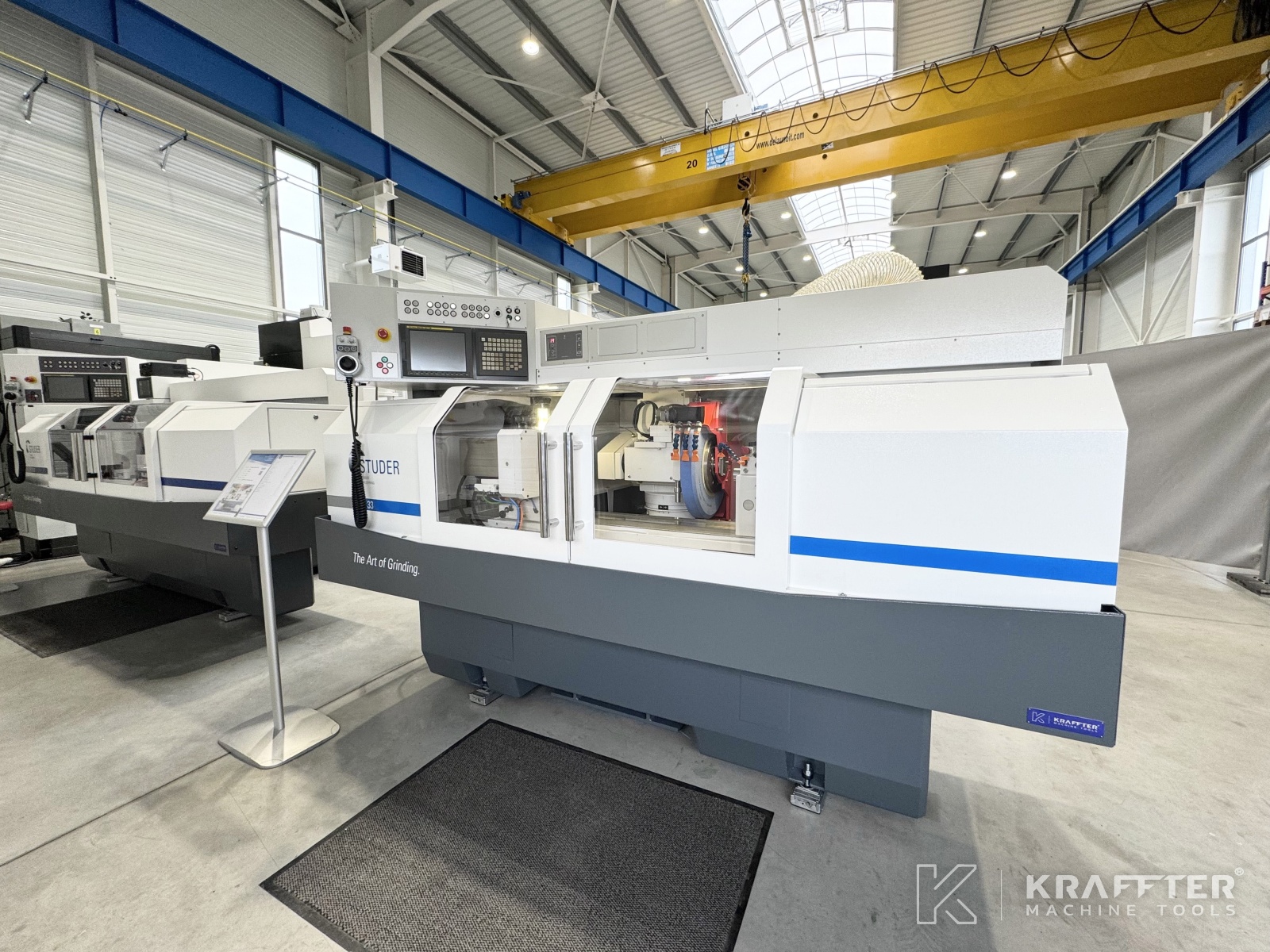

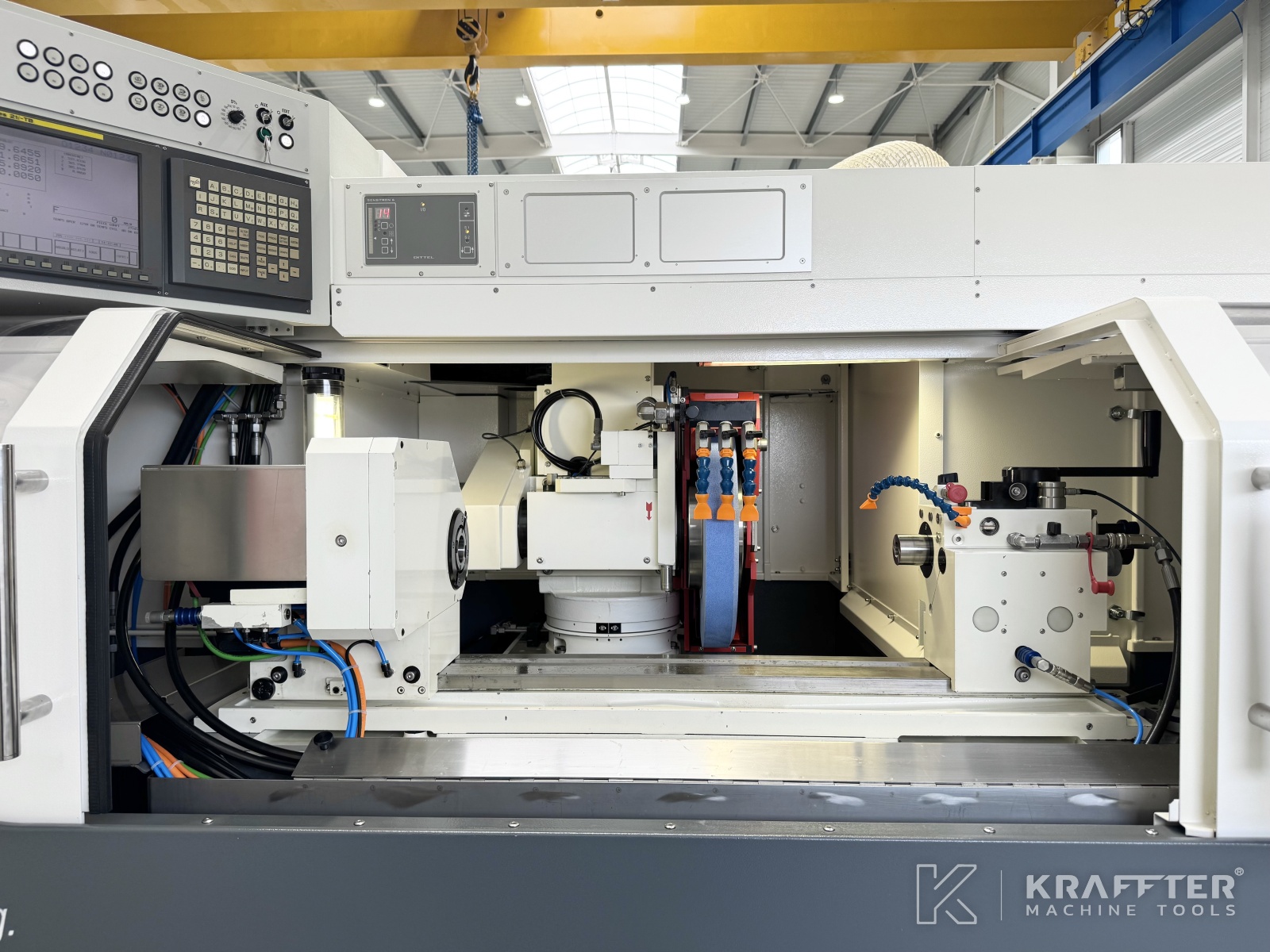

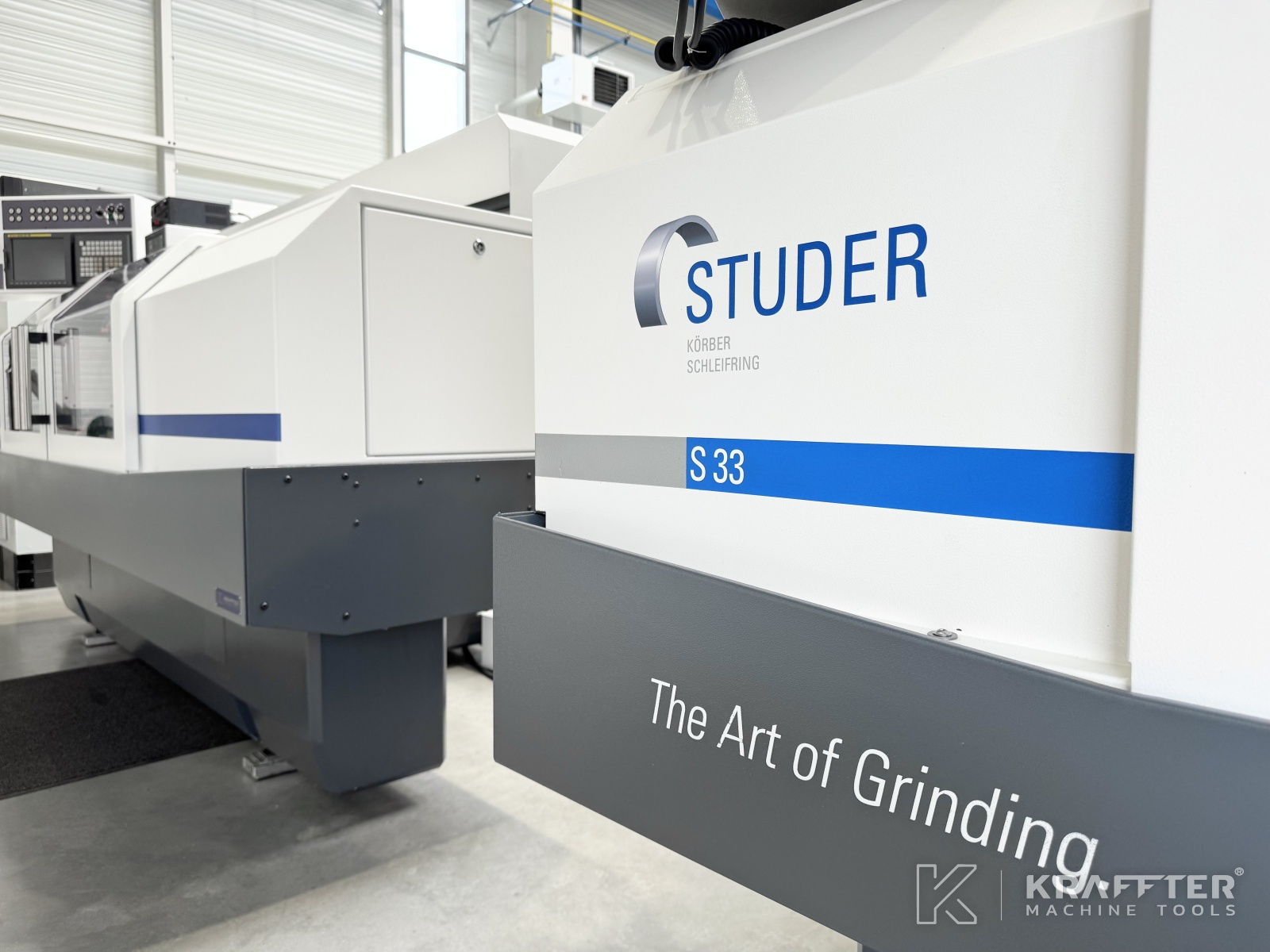

Vrsta stroja : CNC cilindrični brusilni stroj
Blagovna znamka : STUDER
N° de stock: 90177
Model : S33
Leto : 2008
Lokacija : 73240 St-Genix-les-Villages, FRANCE
STROJ PRODAN
Vas zanima podoben model?
Pustite nam svoje kontaktne podatke:
Tehnične specifikacije

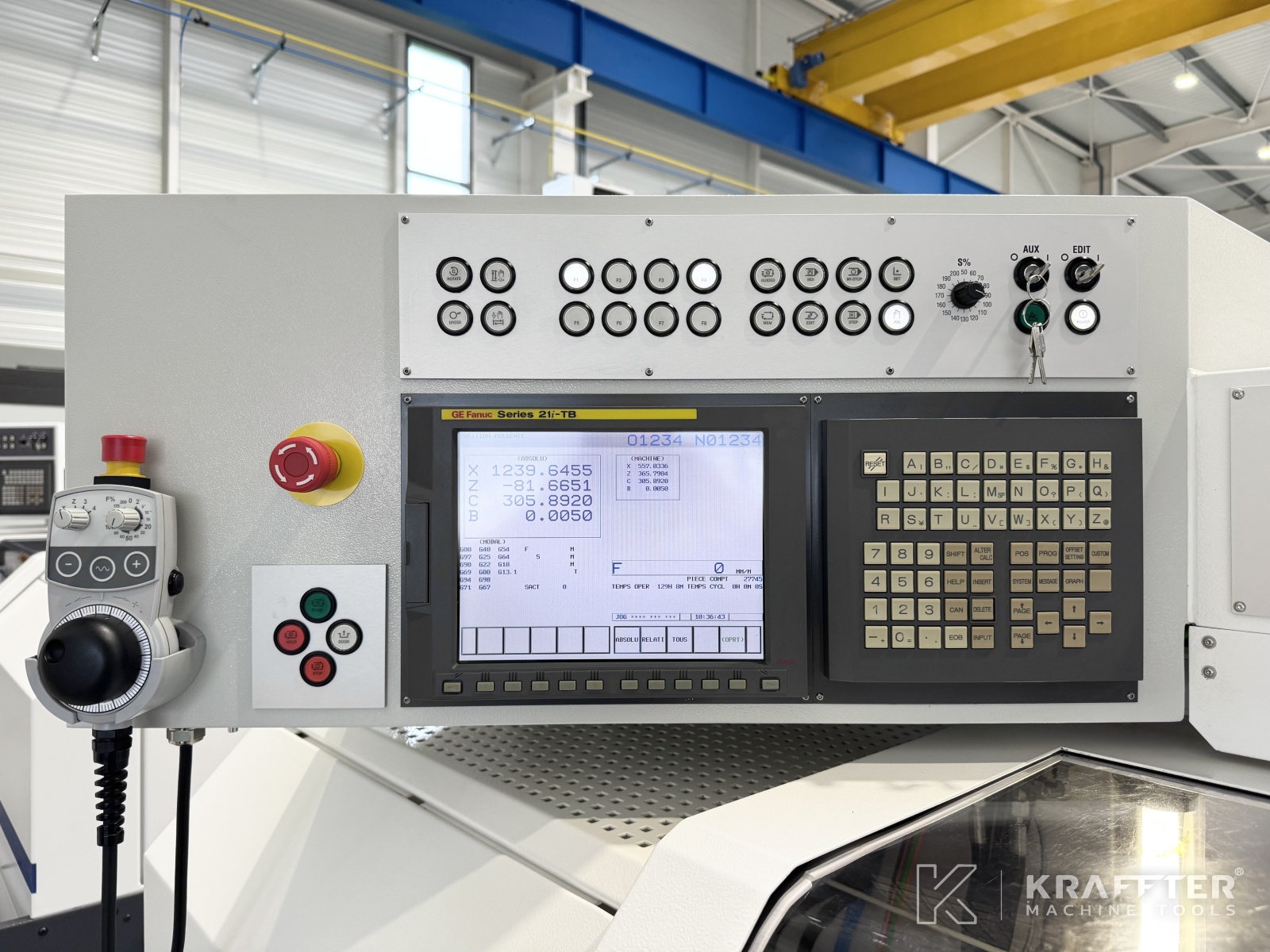

Vrsta CNC
FANUC 21i-TB
Nameščena različica programske opreme
StuderGrind
Razdalja med konicama
650 [mm]
Višina konic
175
Hod osi X
285 [mm]
Minimalna hitrost pomika osi X
0.001 [mm/min]
Največja hitrost hoda os X
5000 [mm/min]
Ločljivost os X
0.0001 [mm]
Hod osi Z
800 [mm]
Minimalna hitrost pomika osi Z
0.001 [mm/min]
Največja hitrost hoda os Z
10000 [mm/min]
Ločljivost os Z
0.0001 [mm]
Kotni hod os B : kotni pomik mize
-15 [°] / +195 [°]
Natančnost indeksiranja osi B
Hirth 1 [°]

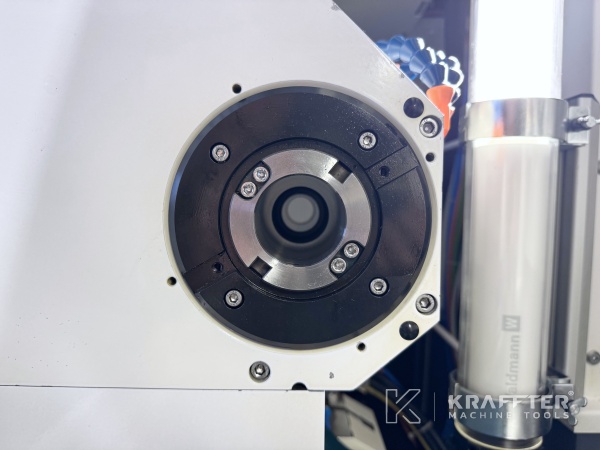

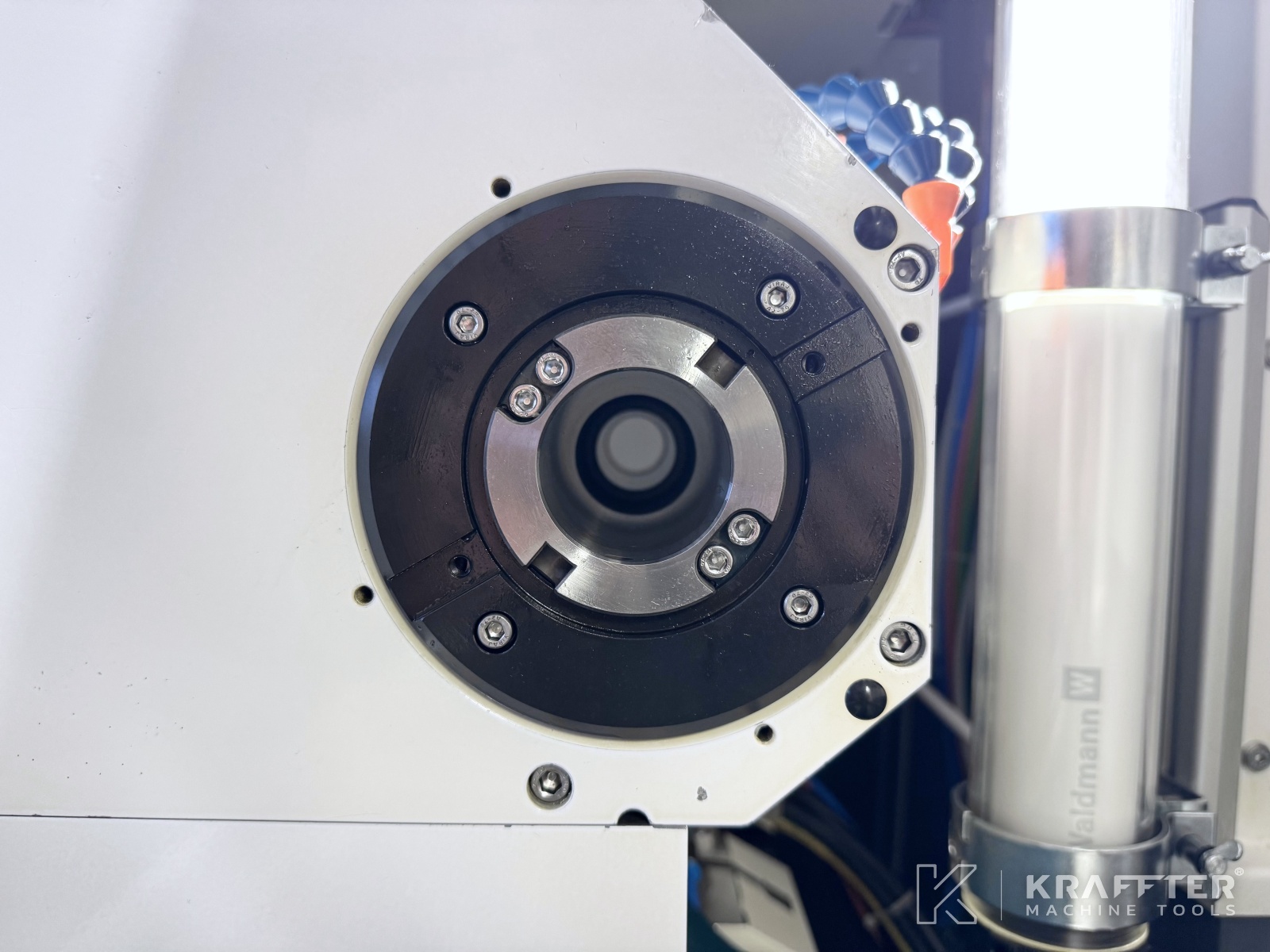

Nos vretena obdelovanca
MT5
Najmanjša hitrost vretena obdelovanca
1 [vrt/min]
Največja hitrost vretena obdelovanca
1500 [vrt/min]
Največja dovoljena teža čelne glave med centri
80 [Kg]
Stožec konjička
MT3
Hod pinole konjička
35 [mm]
Premer pinole konjiček
50 [mm]
Fina nastavitev protiopore
+/- 40 [mm]
Delovni čas
2452 [h]
Napajalna napetost
400 [V]
Instalirana moč
20 [kVA]
Uteži
4000 [Kg]
Dodatne informacije

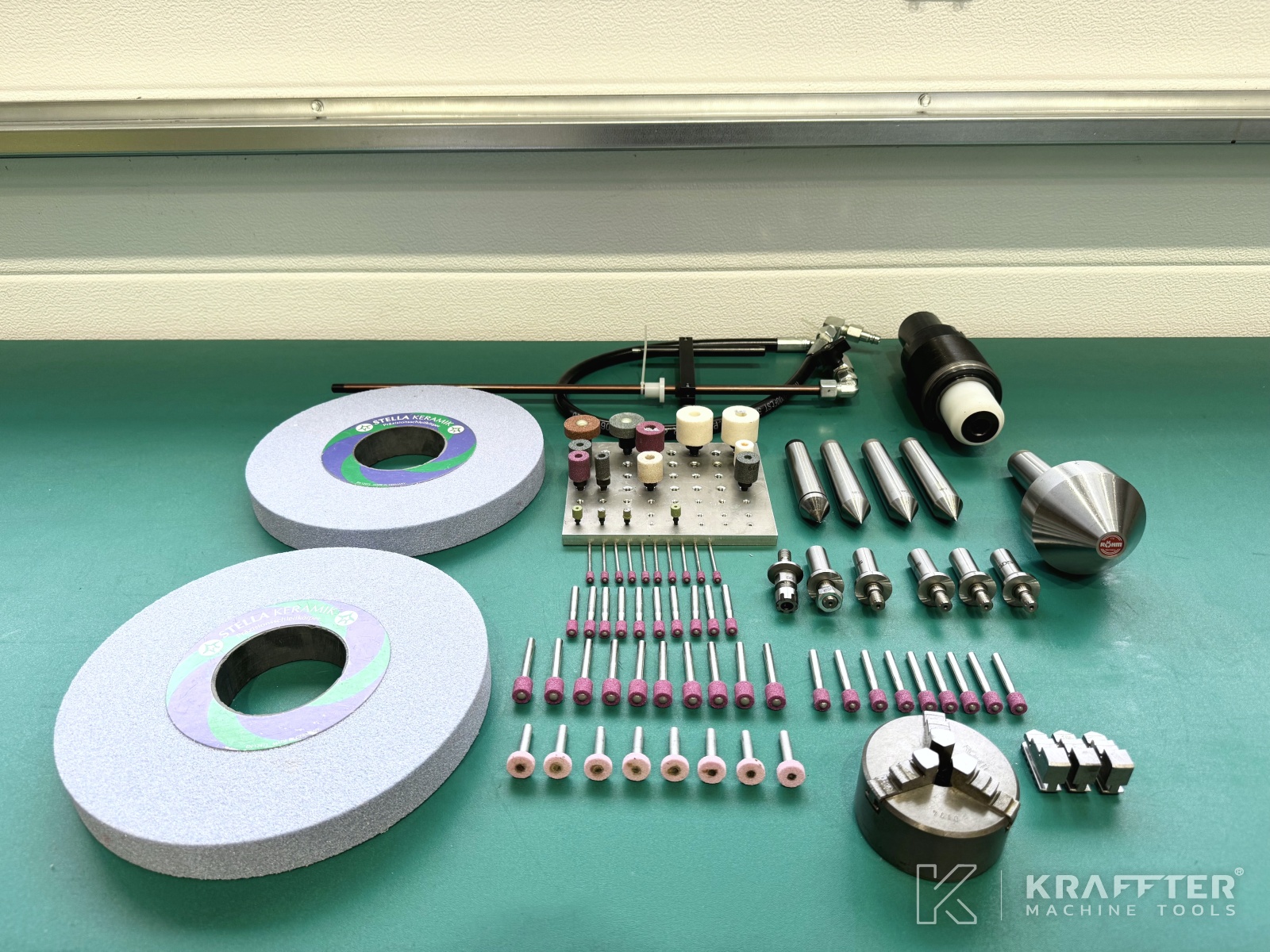

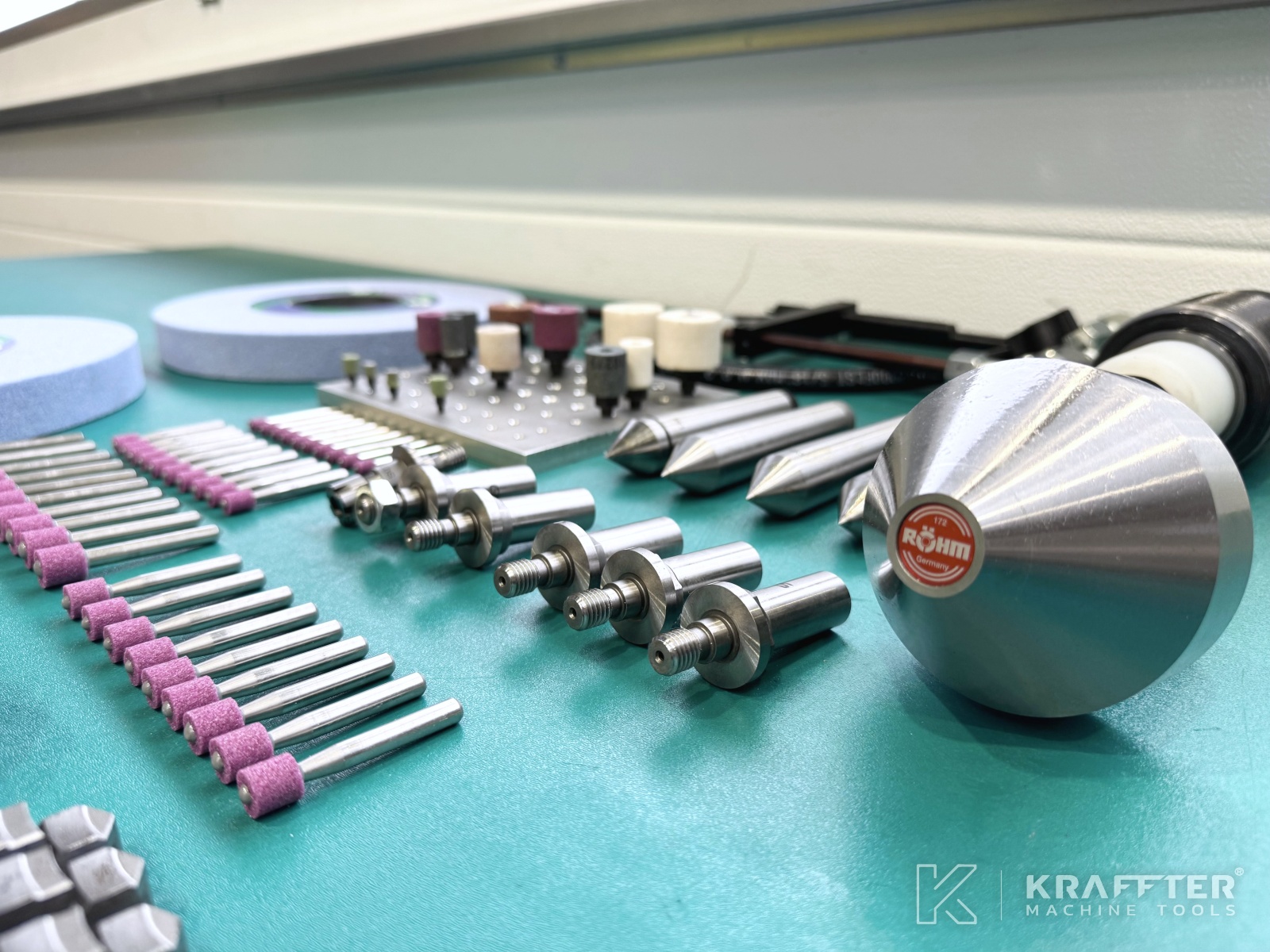

INCLUDED EQUIPMENT:
-

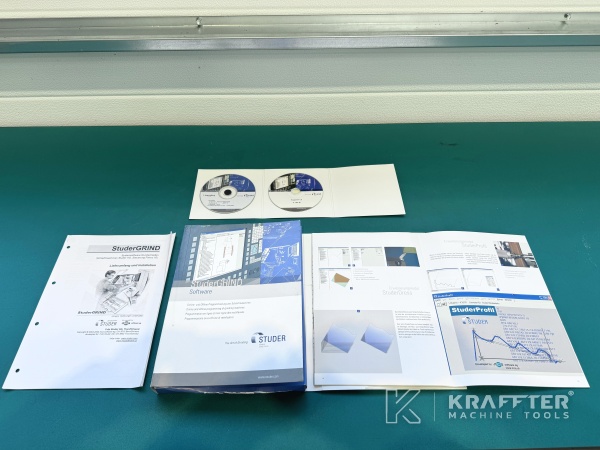

x1 CD-ROM with STUDER Grind software to be installed on a PC
-
x1 STUDER Thread license
-
x1 STUDER Profil license
-

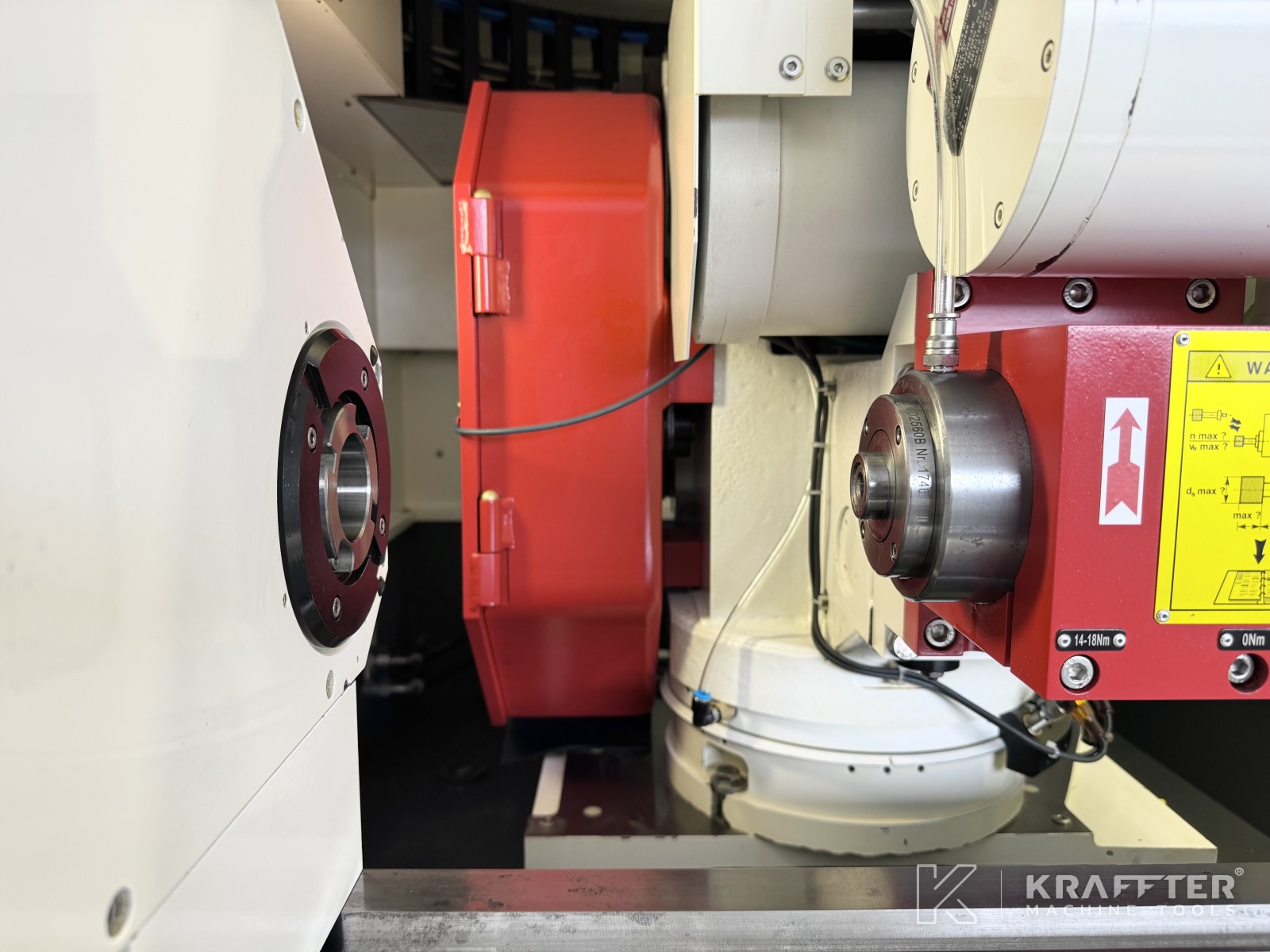

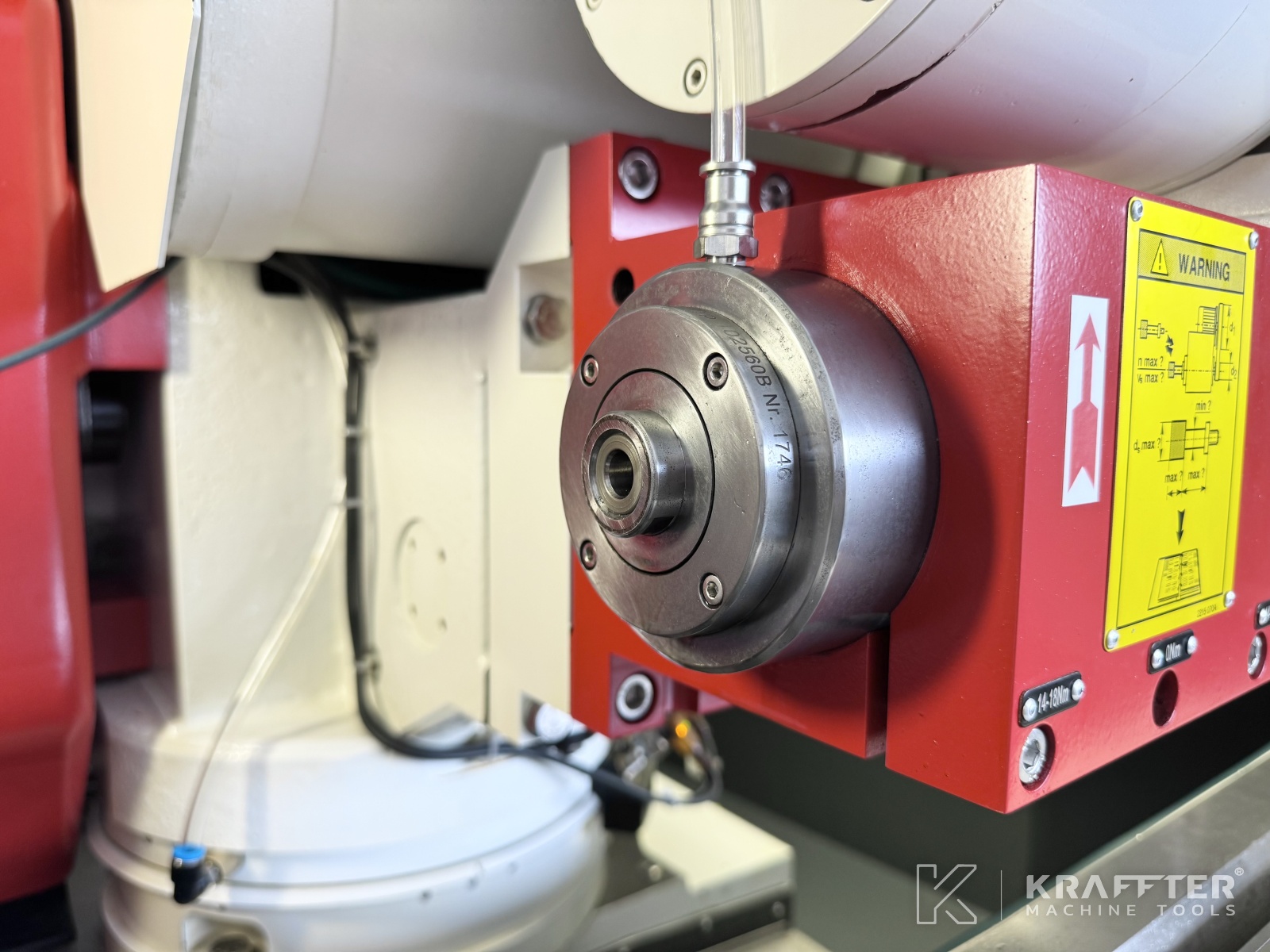

x1 internal grinding spindle type 102560B – speed: 60,000 [rpm]
-
x9 internal grinding wheel arbors
-

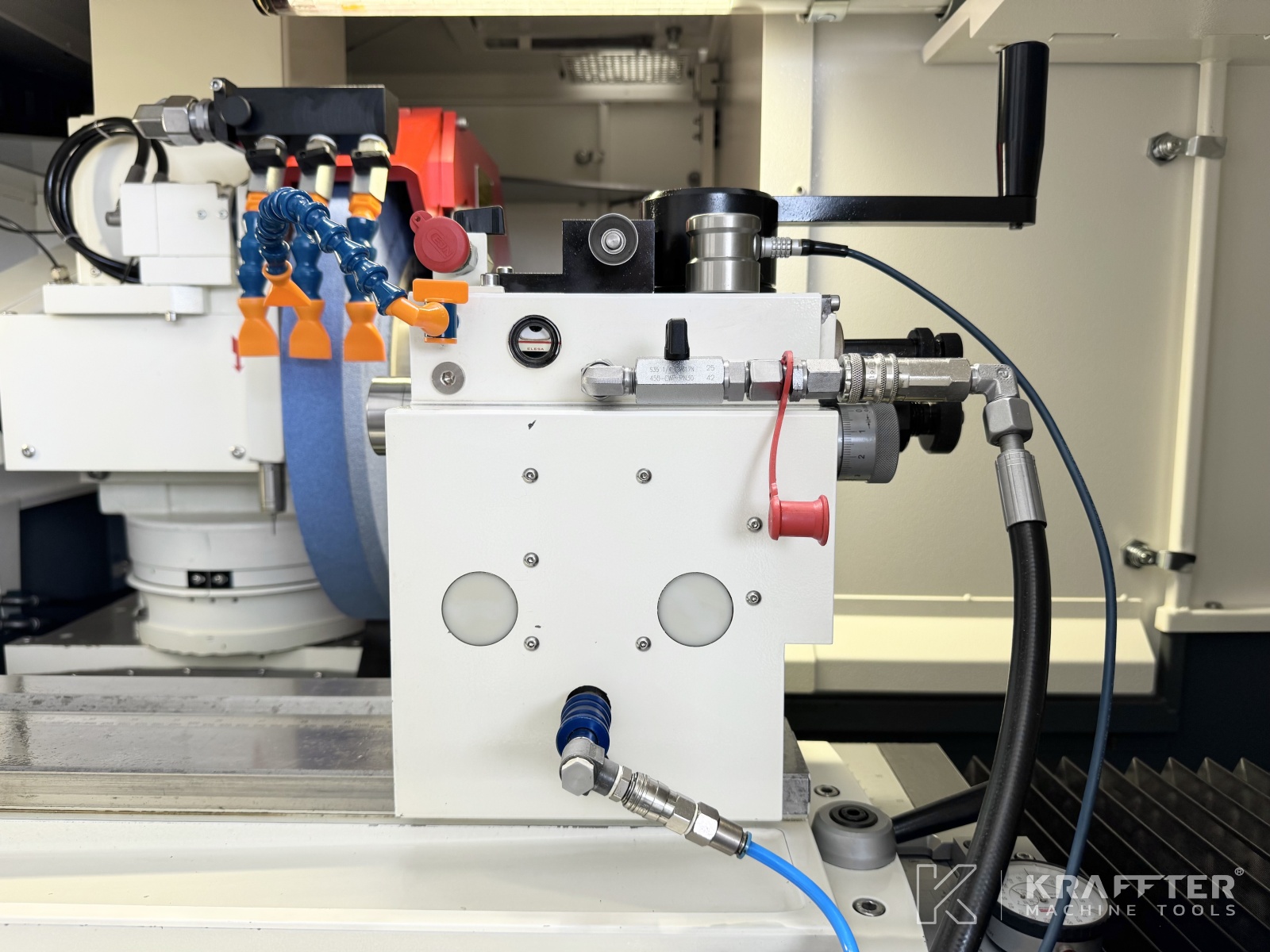

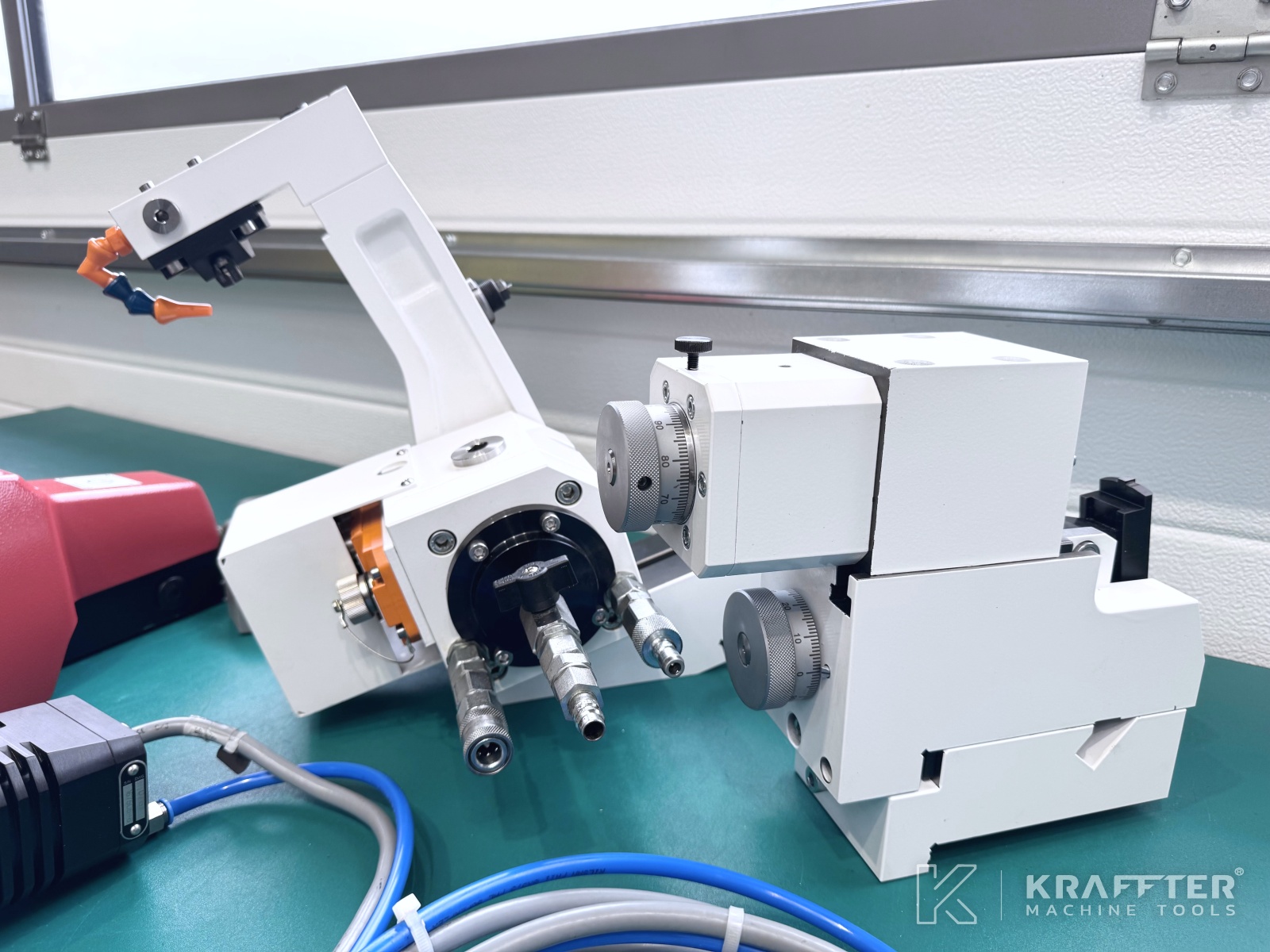

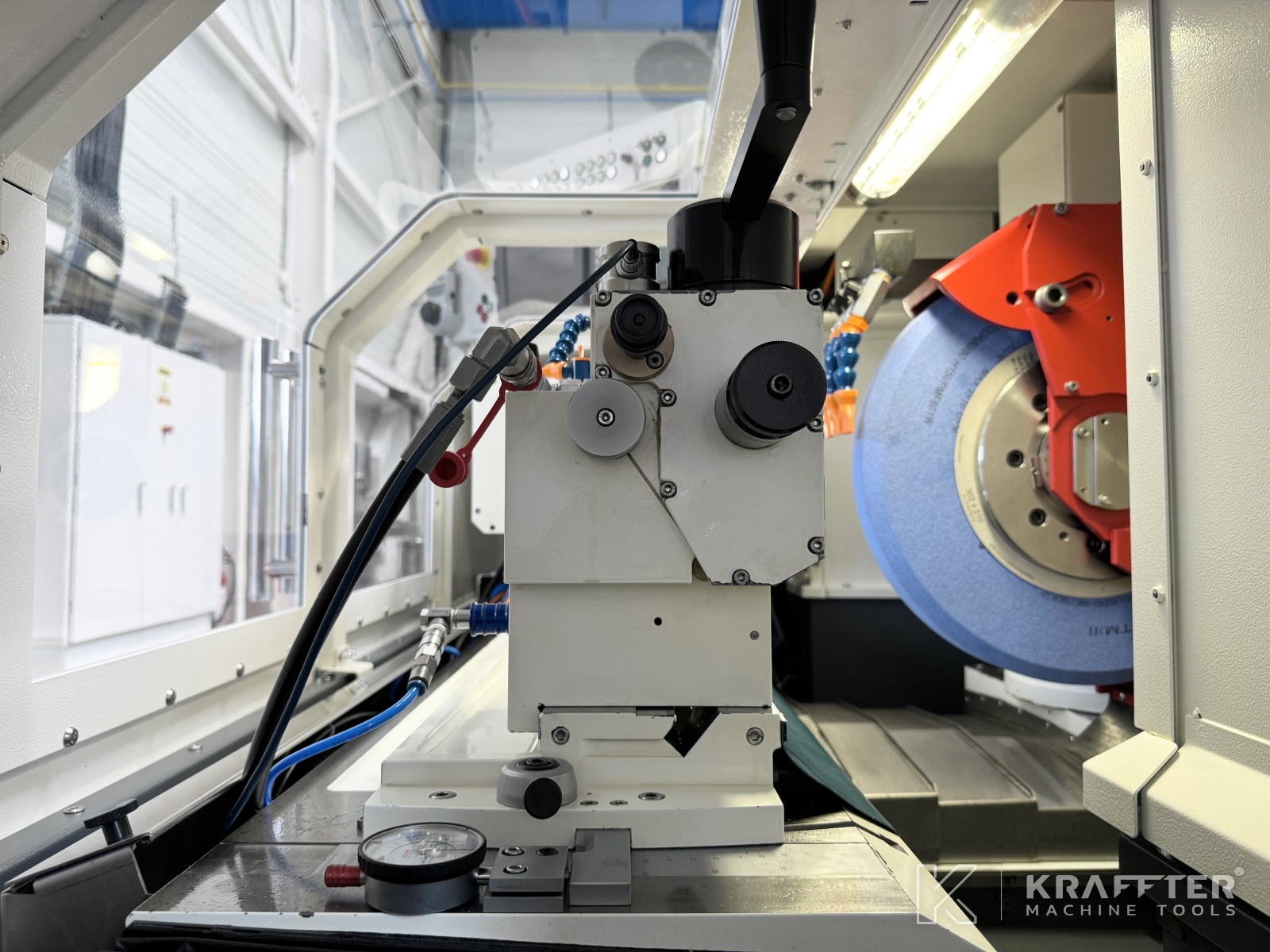

x1 hydraulic swiveling dressing attachment
-
x1 fixed dressing unit mounted on the table
-
x1 rotating wheel dressing unit (electrical)
-

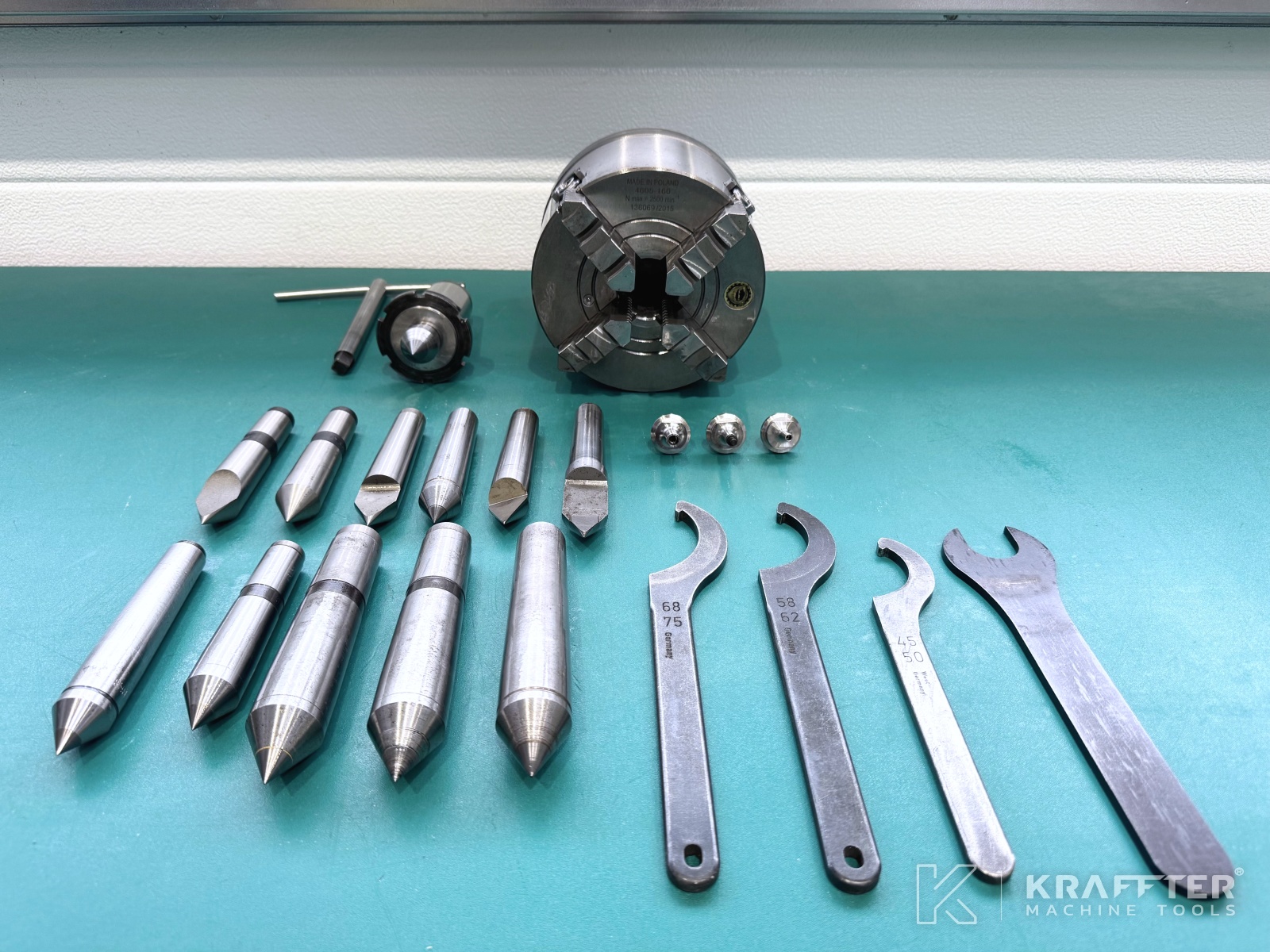

x1 4-jaw chuck Ø170 [mm] - MT5
-
x3 sets of hard jaws
-

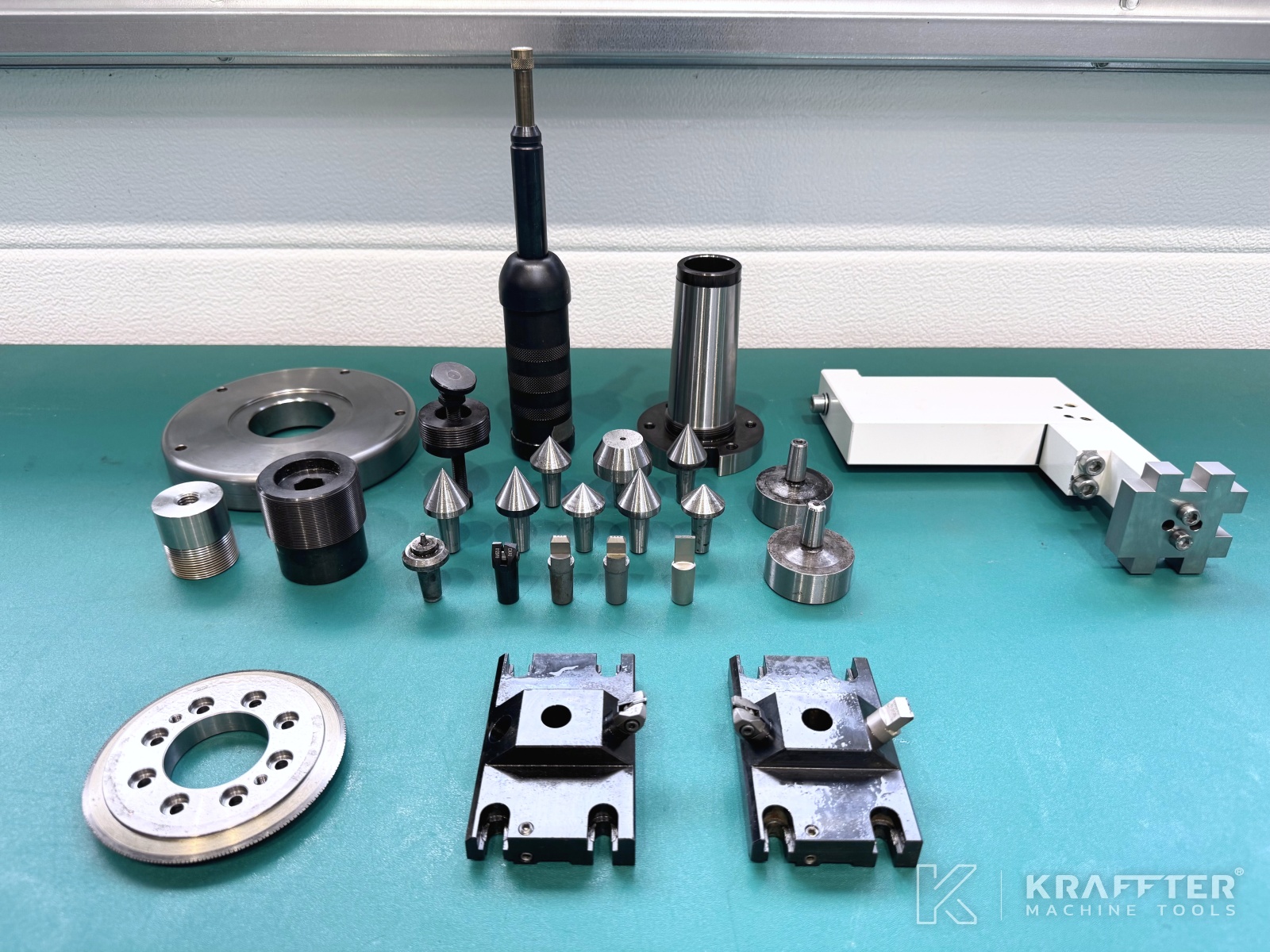

x11 full centres
-
x4 half-centres
-
x1 RÖHM blunt centre
-
x1 2-point steady rest
-
x62 internal grinding wheels
-

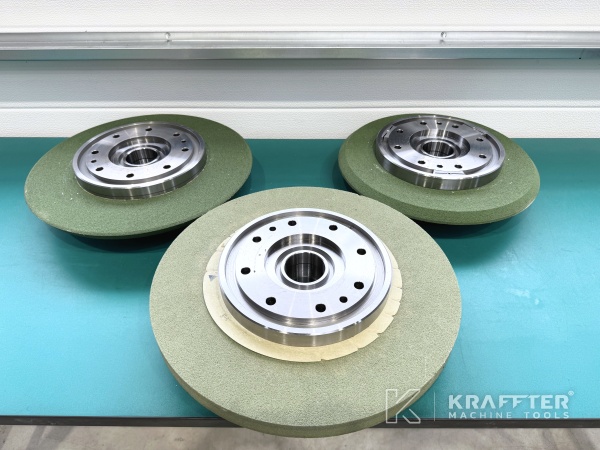

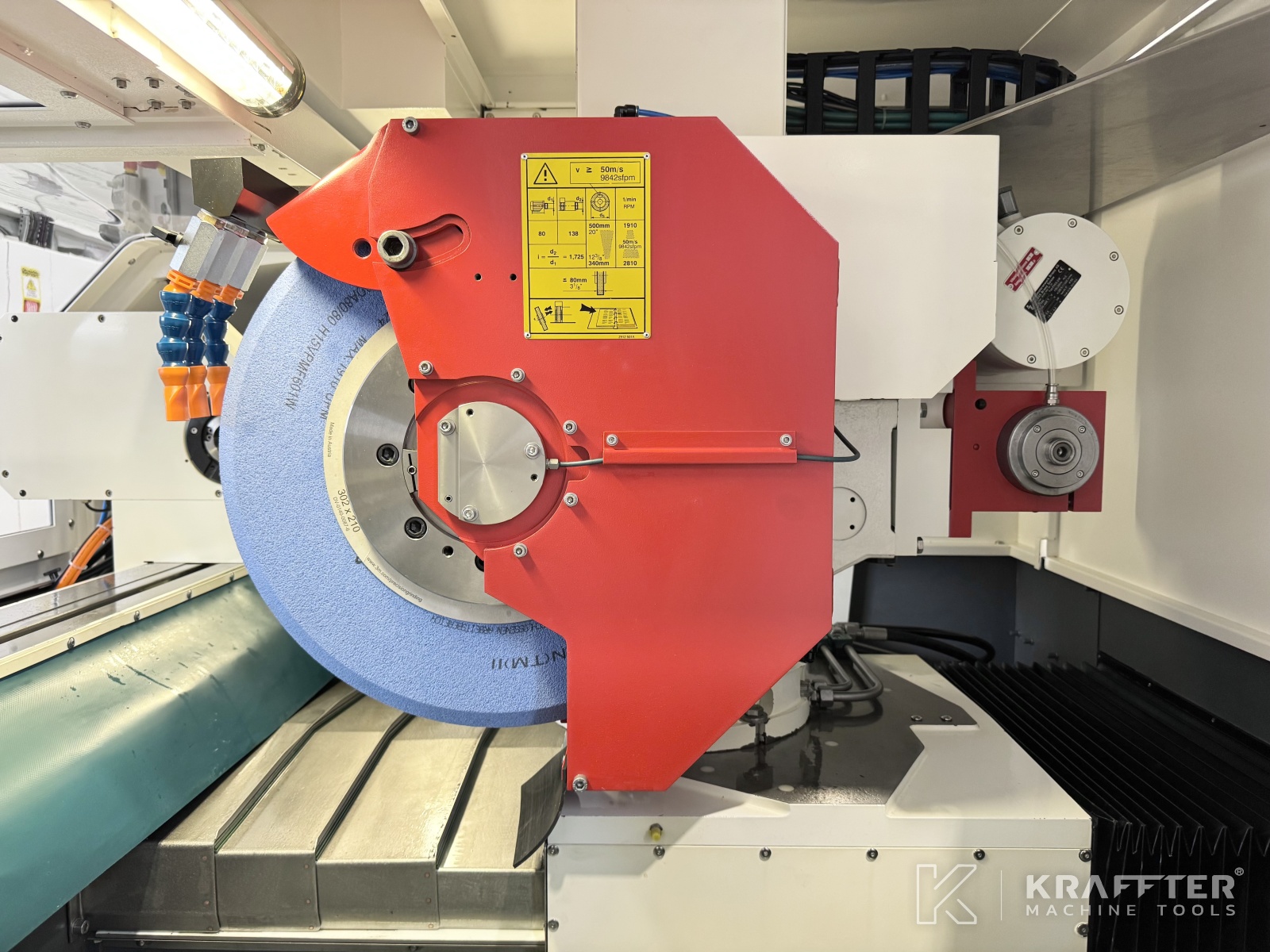

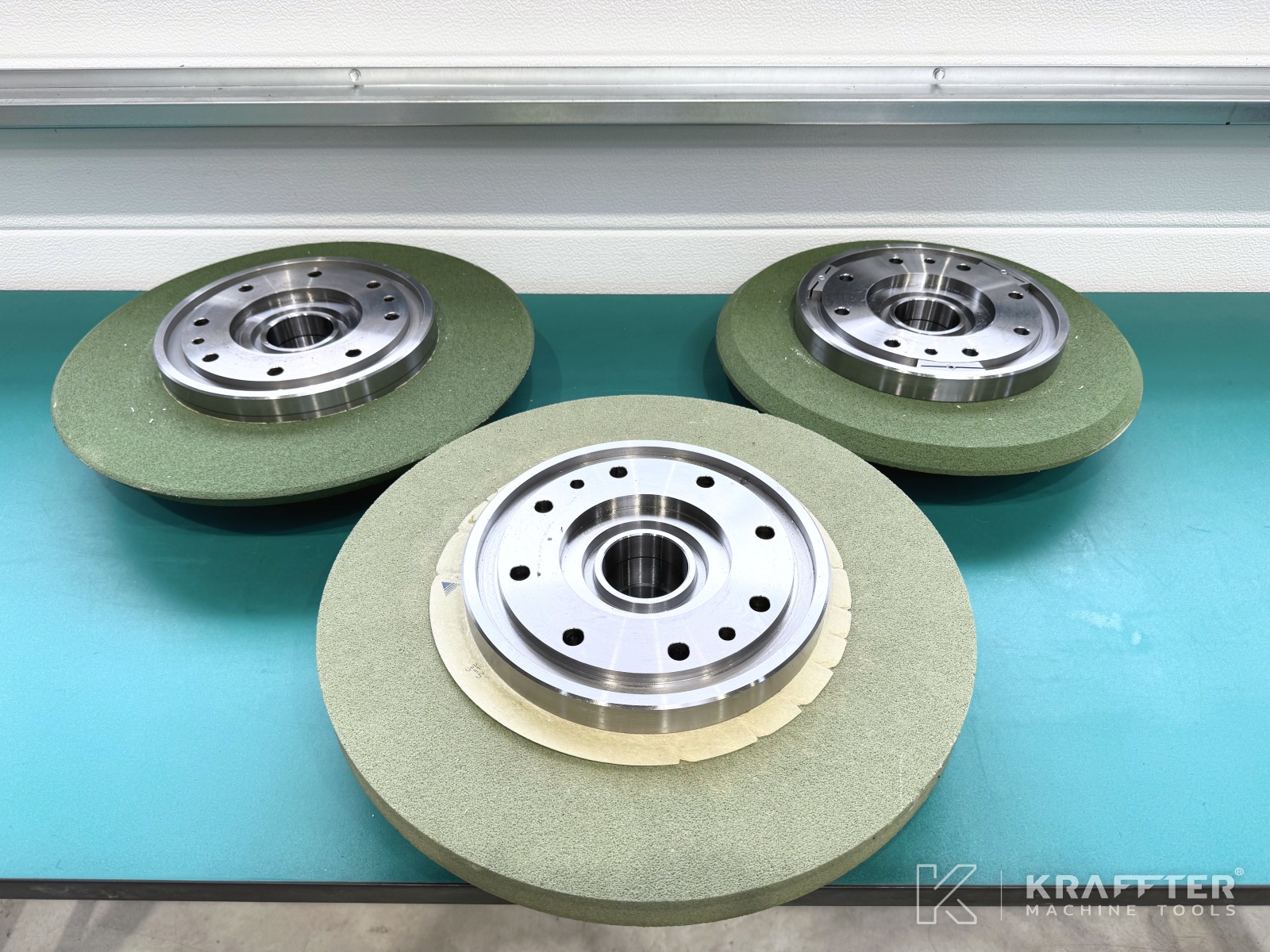

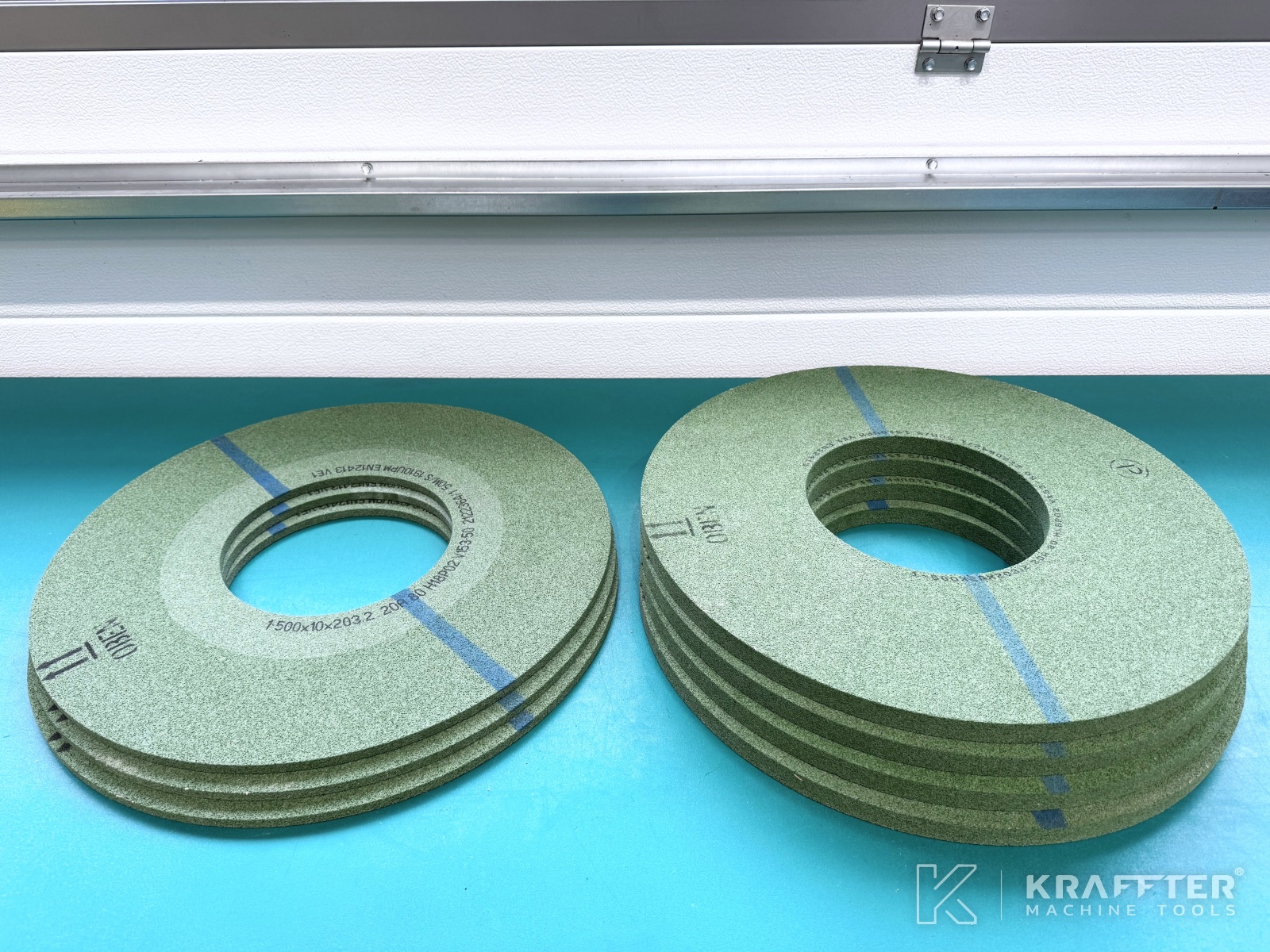

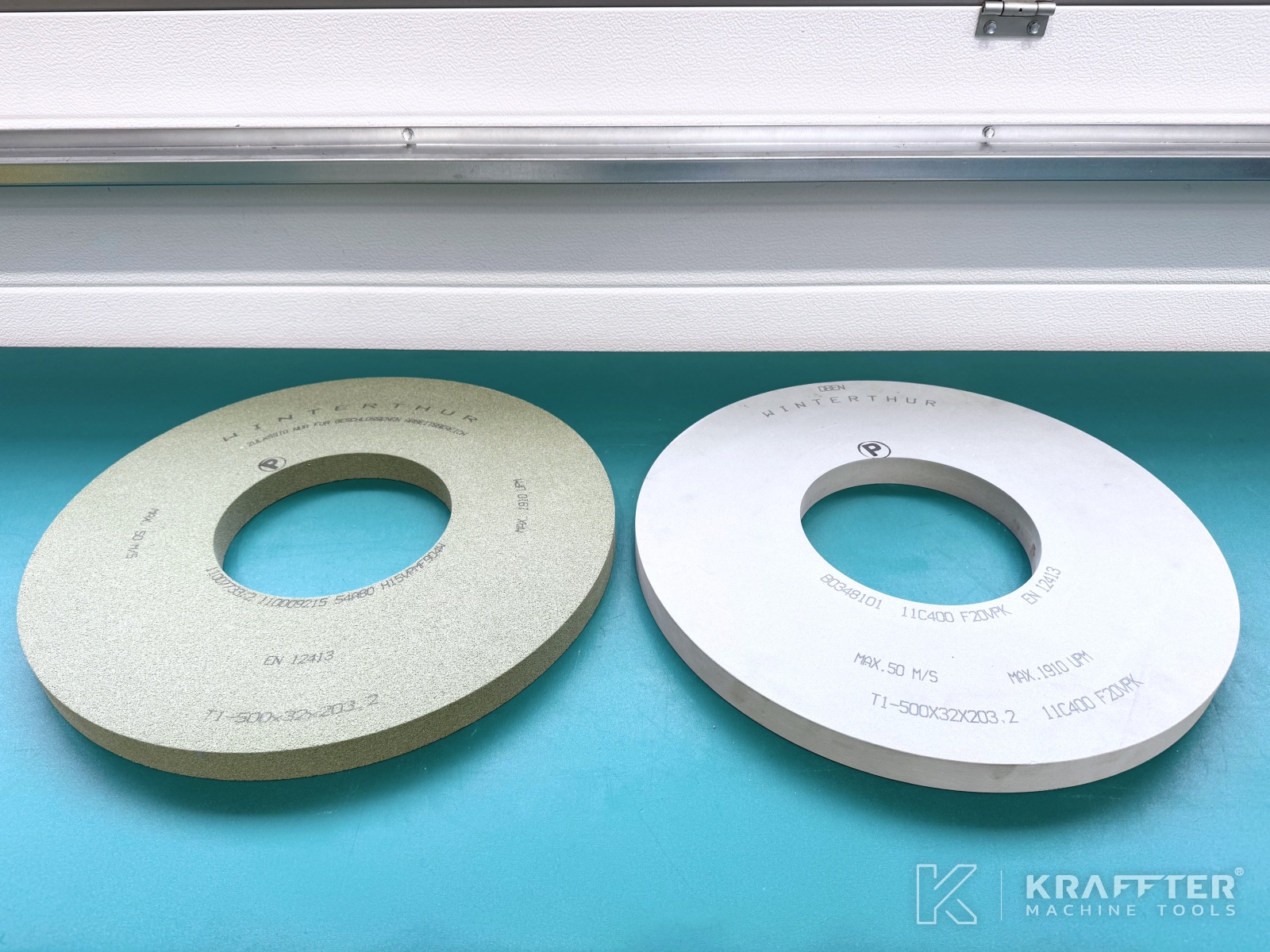

x10 external grinding wheels
-
x7 service keys
-
x1 pneumatic tailstock lift
-
x1 pneumatic upper-table lift
-
x1 longitudinal slide with rotary table - swiveling up to 8.5 [°]
-

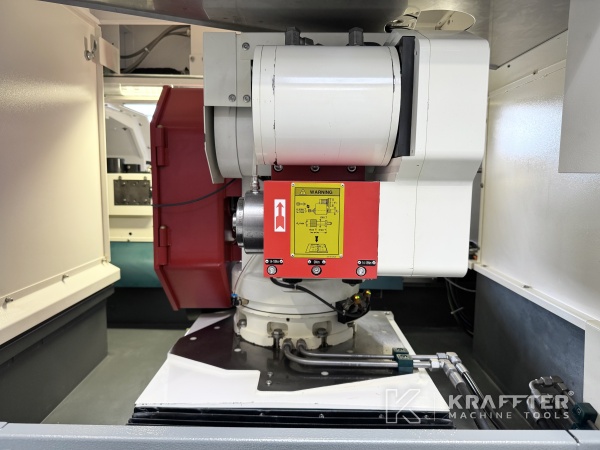

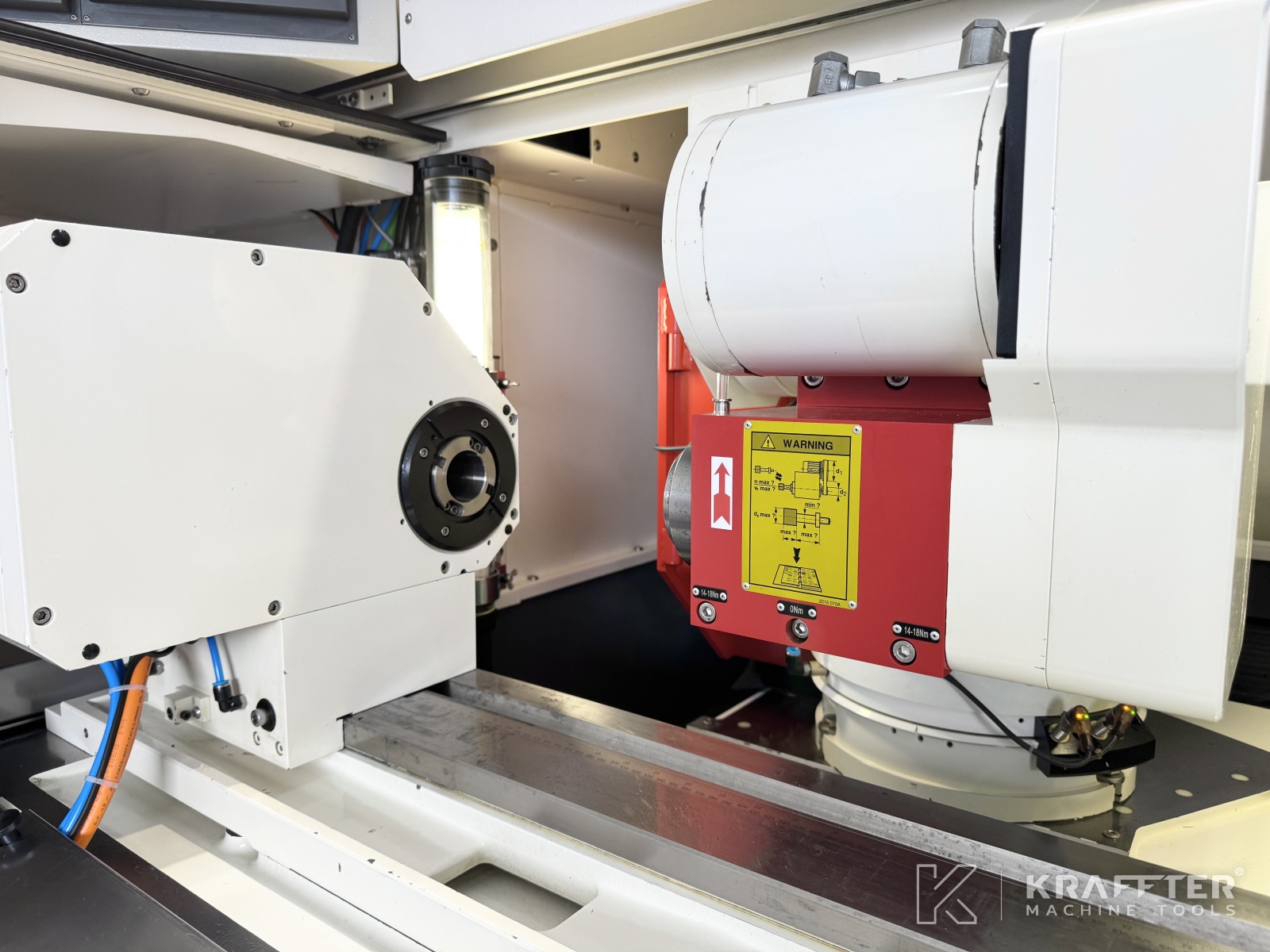

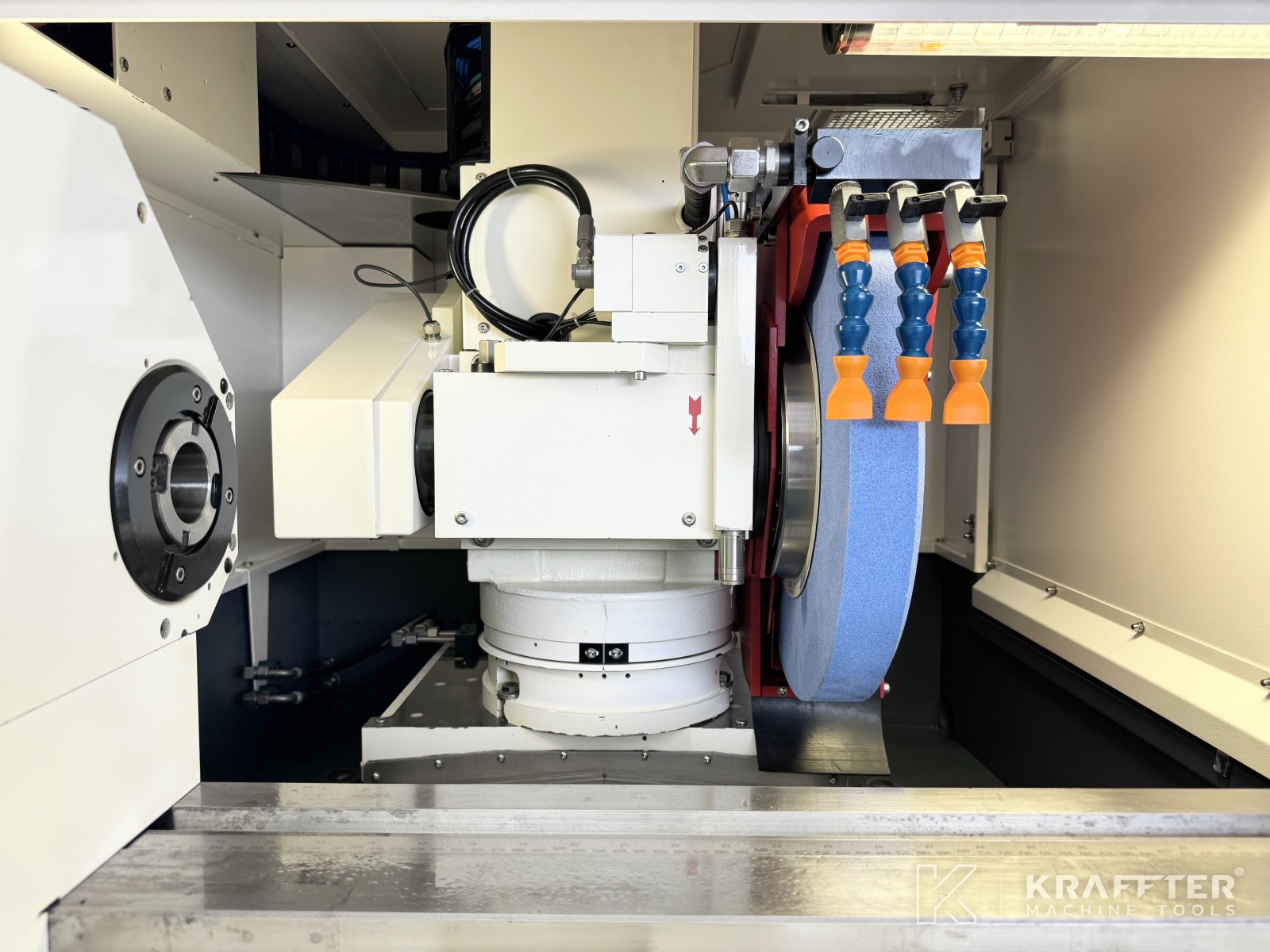

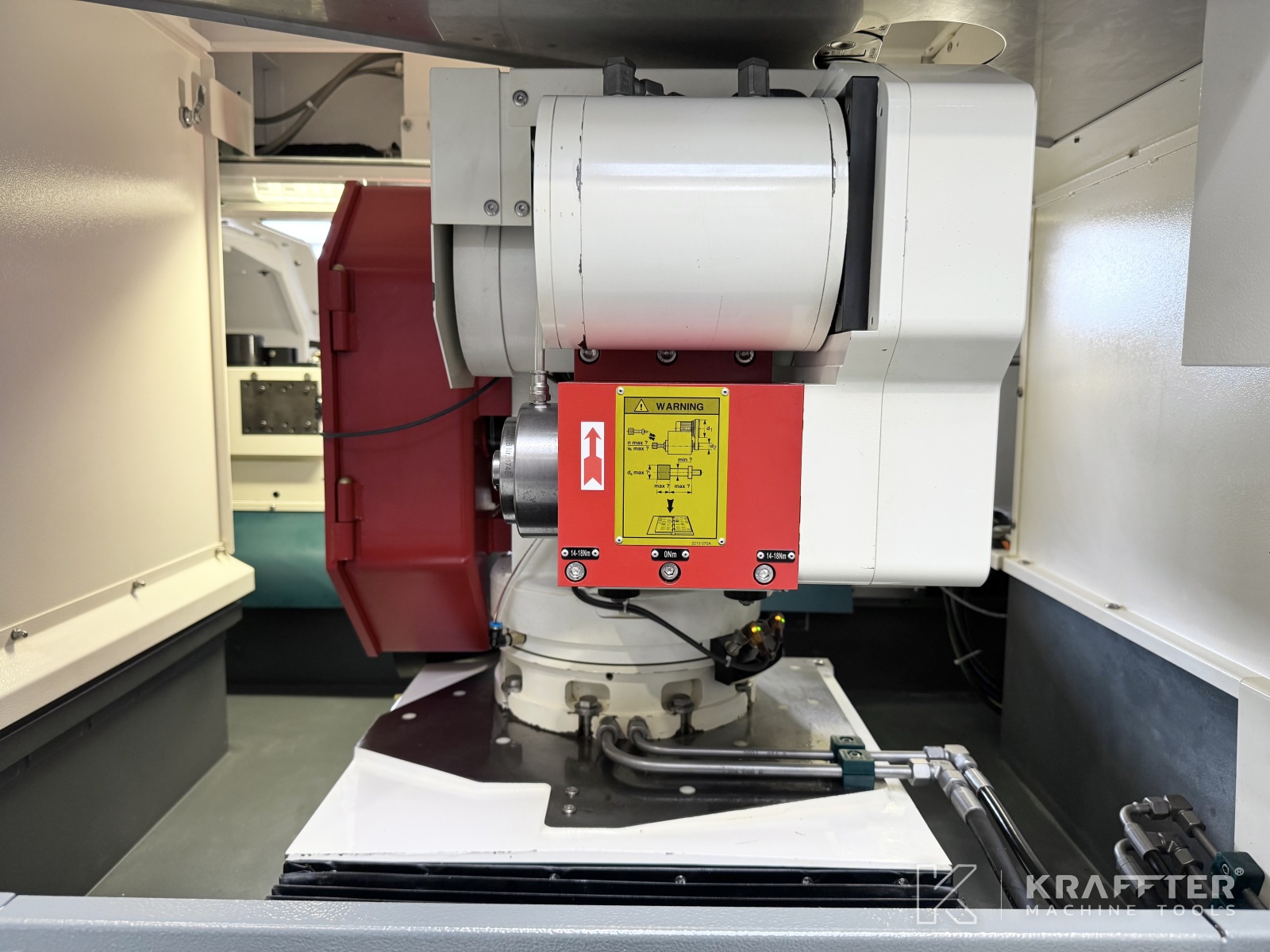

x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°]
-
x1 C-axis for thread and form grinding
-

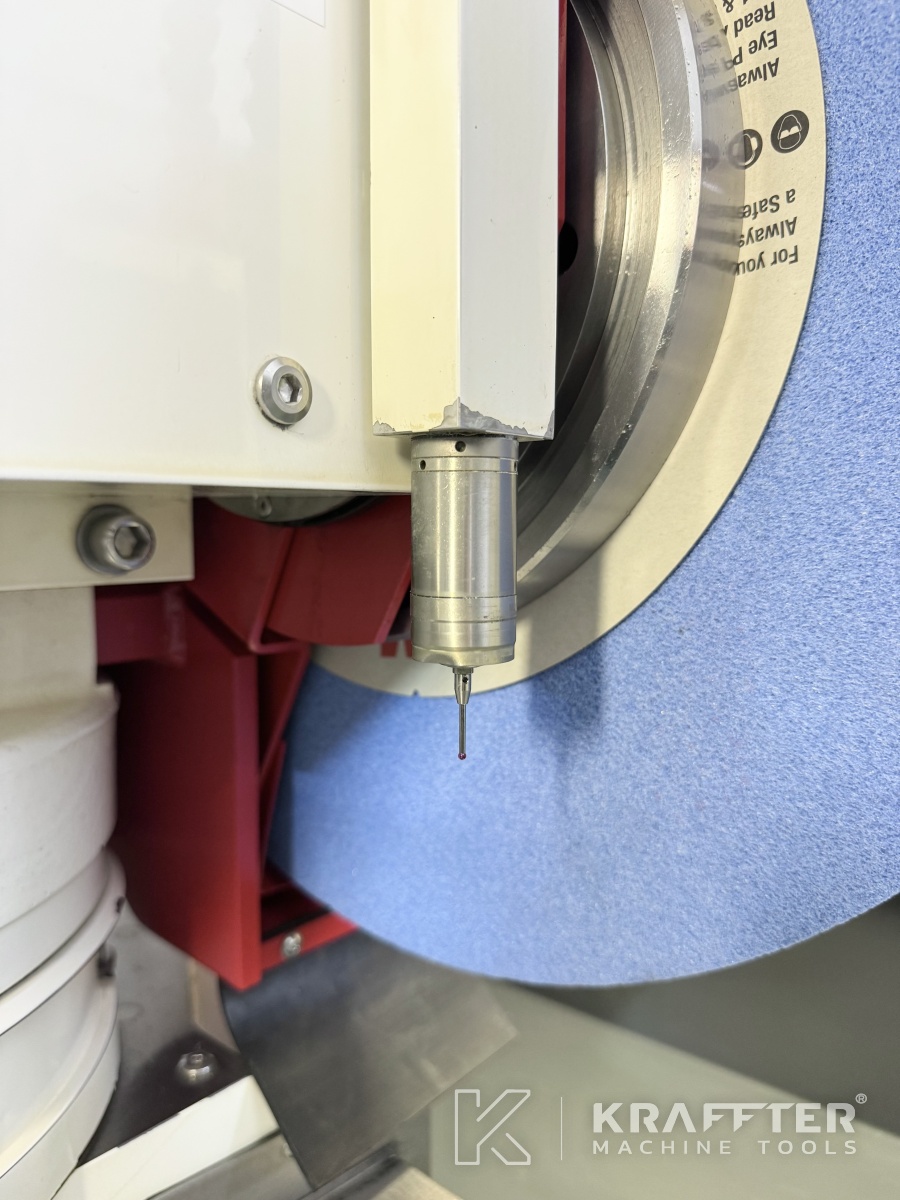

x1 workpiece probe MOVOMATIC C25
-

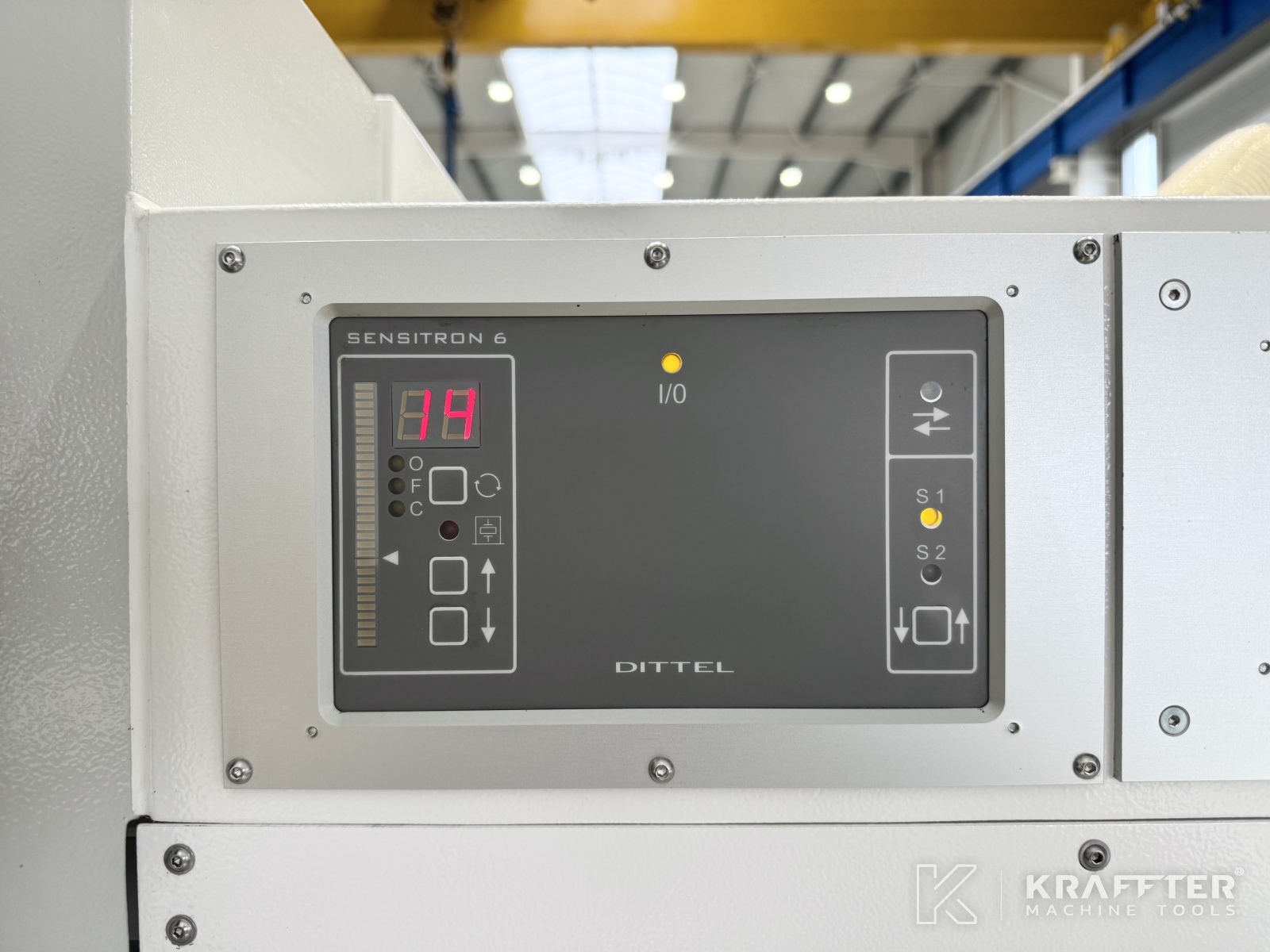

x1 contact control device DITTEL SENSITRON 6
-

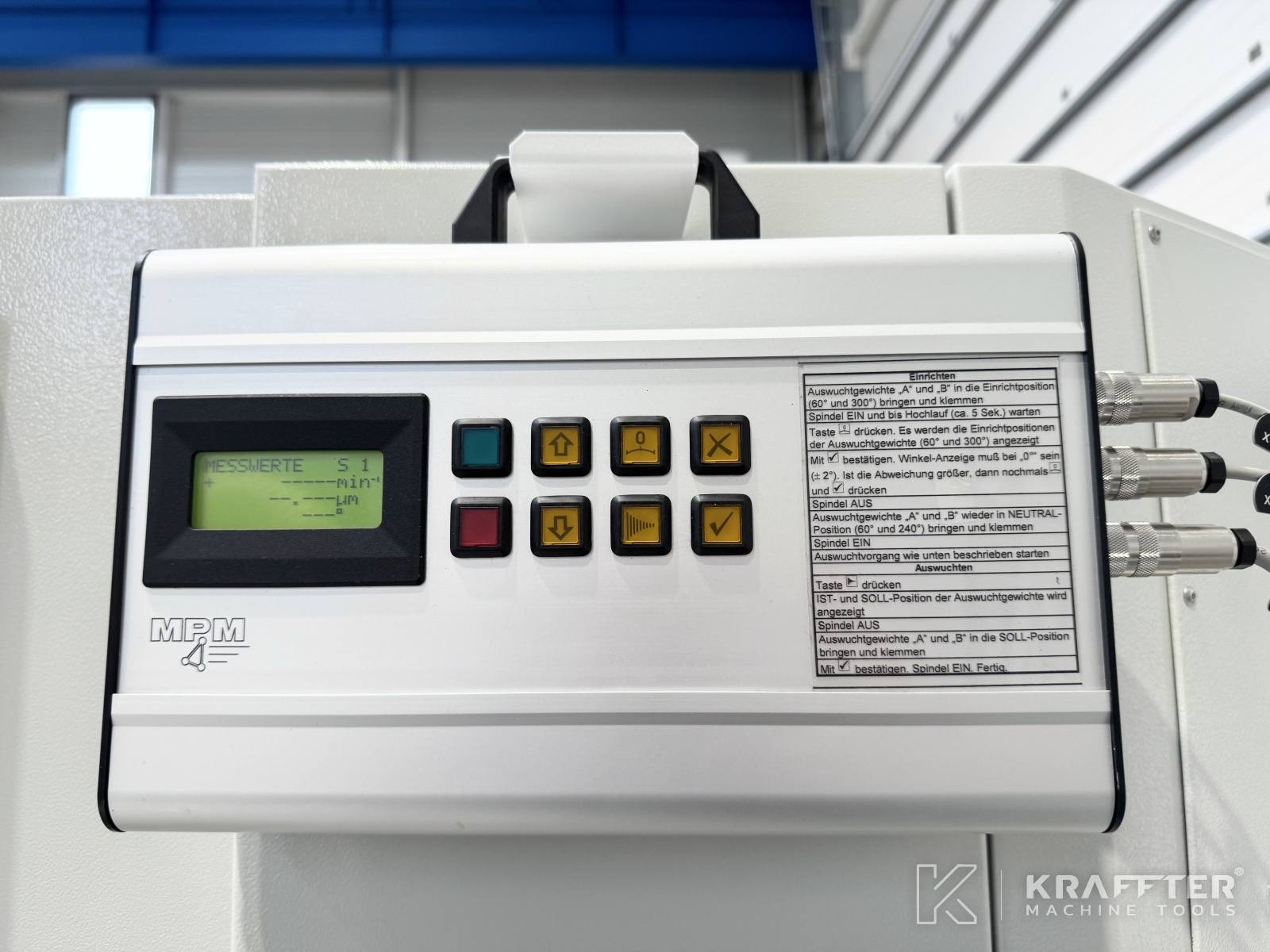

x1 semi-automatic wheel balancing device MPM type BMT100M
-

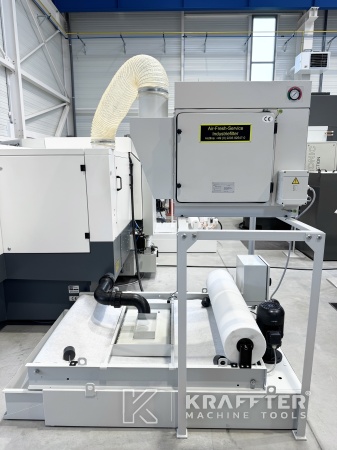

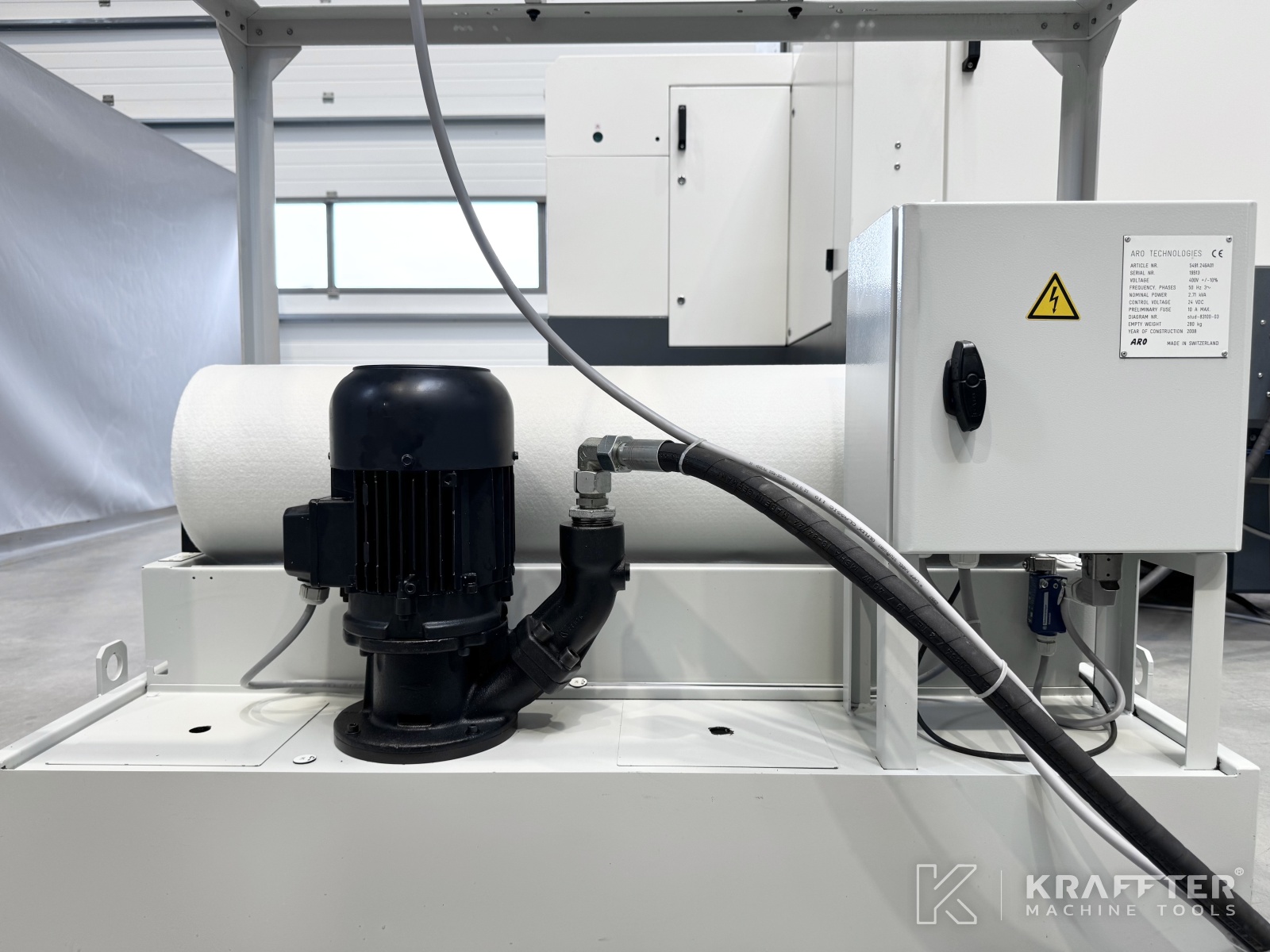

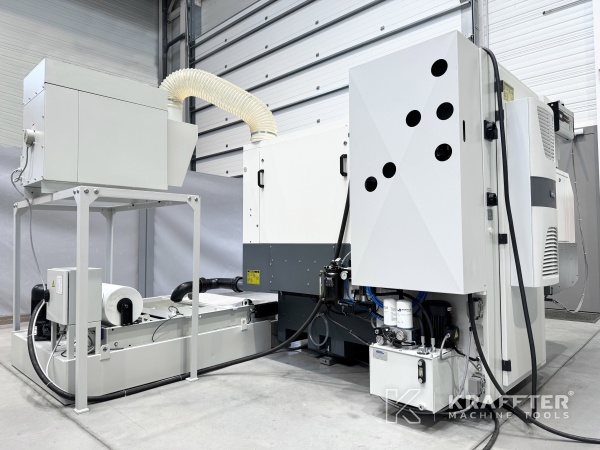

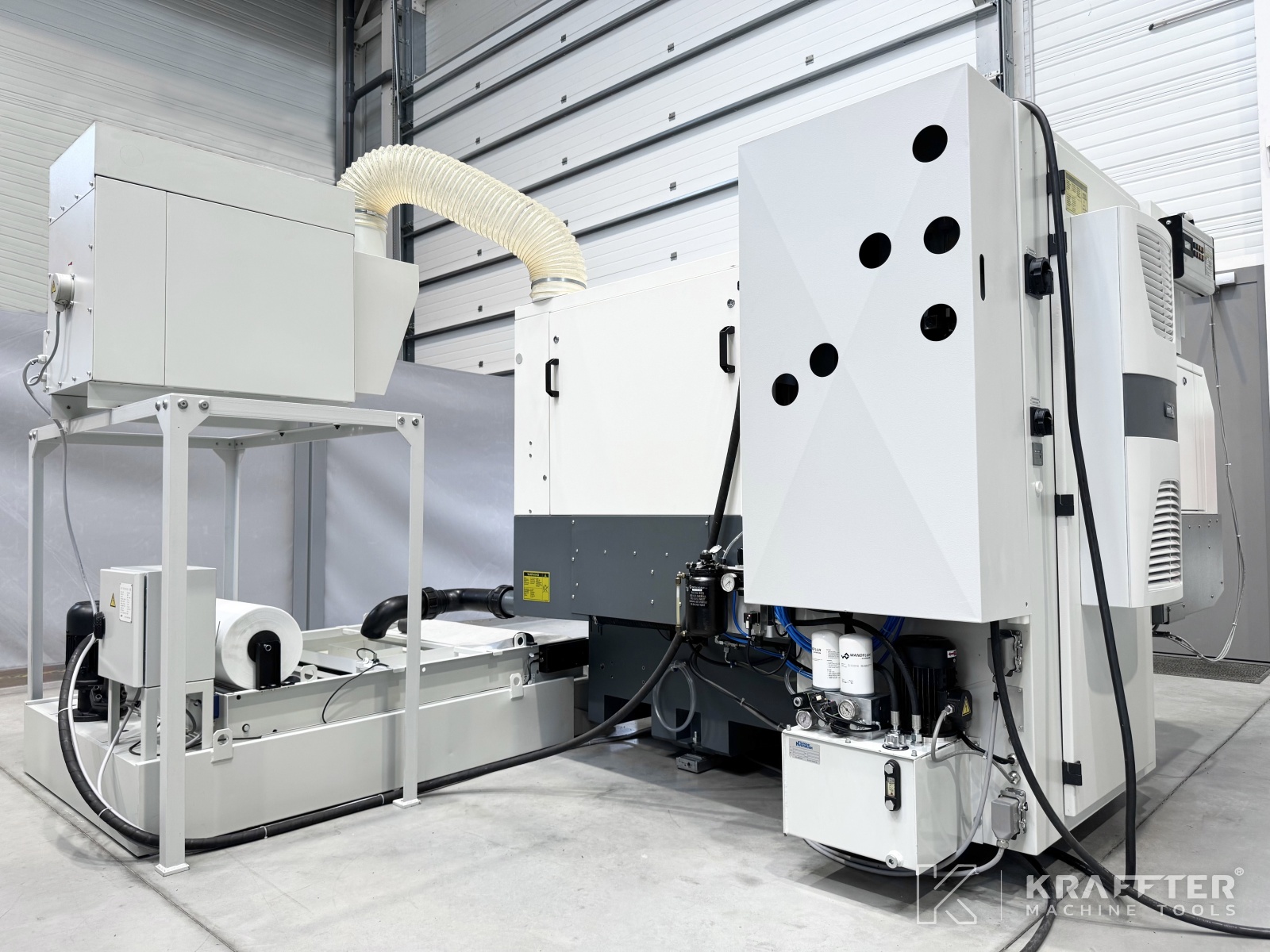

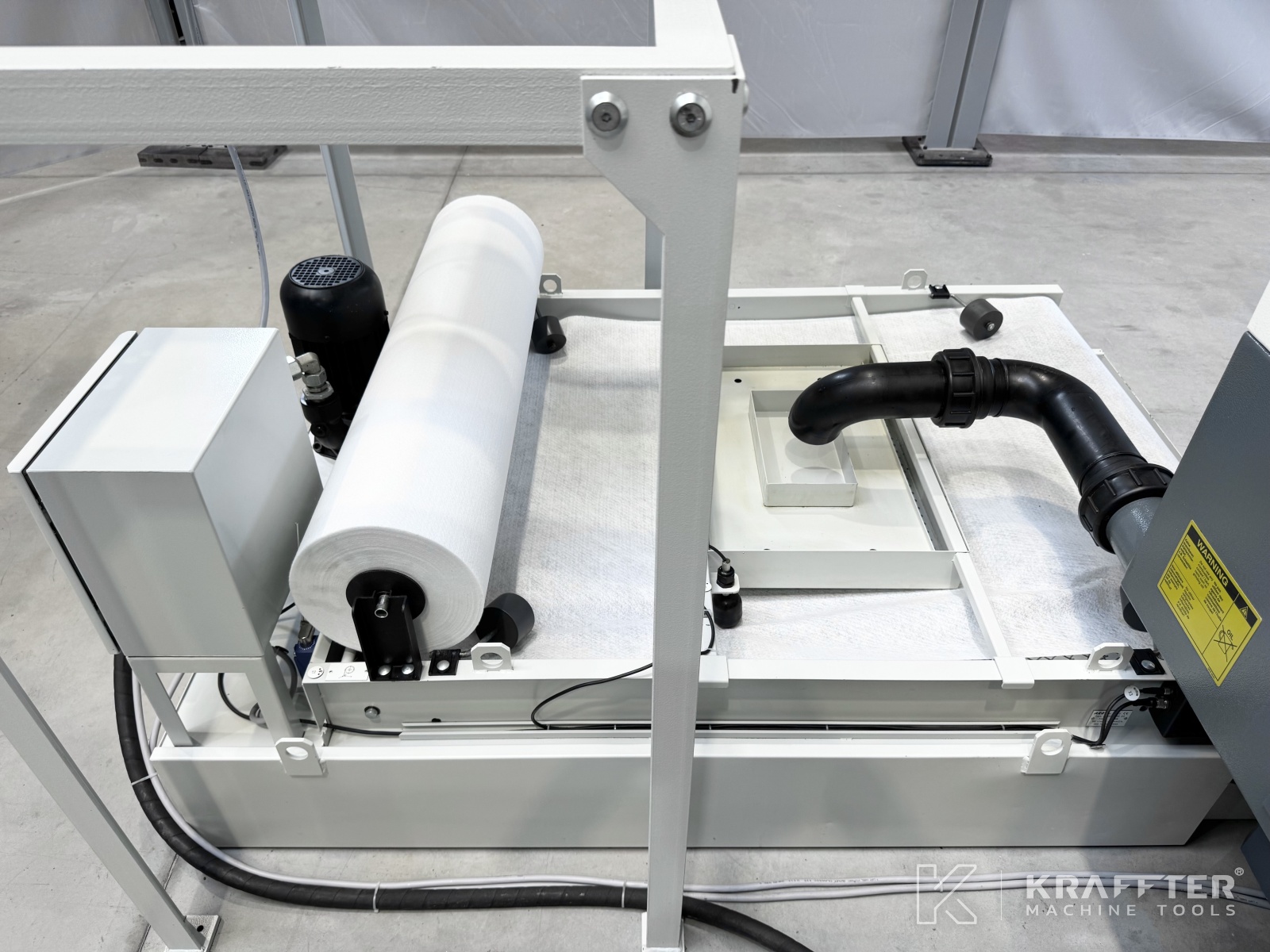

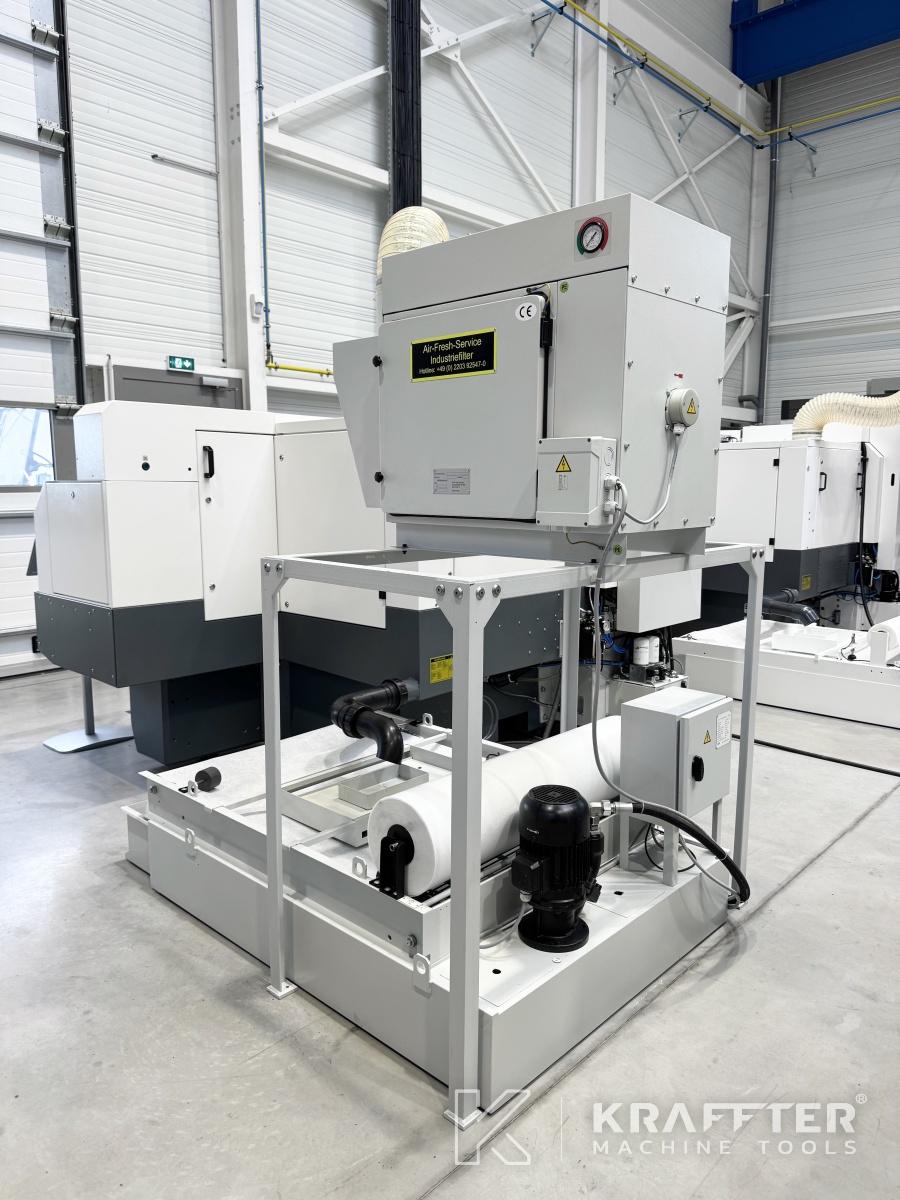

x1 paper filtration unit ARO TECHNOLOGIES type 5491.246A01
-

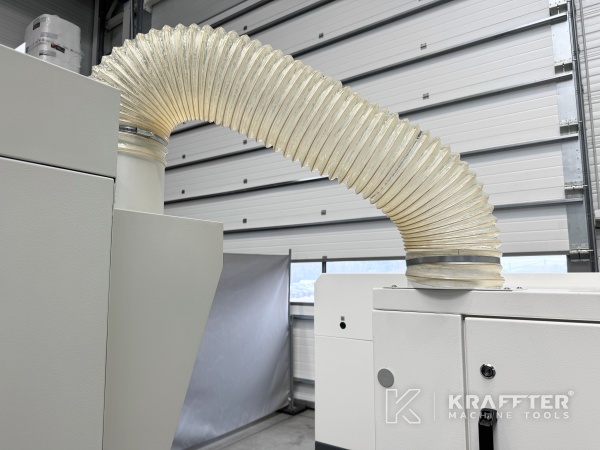

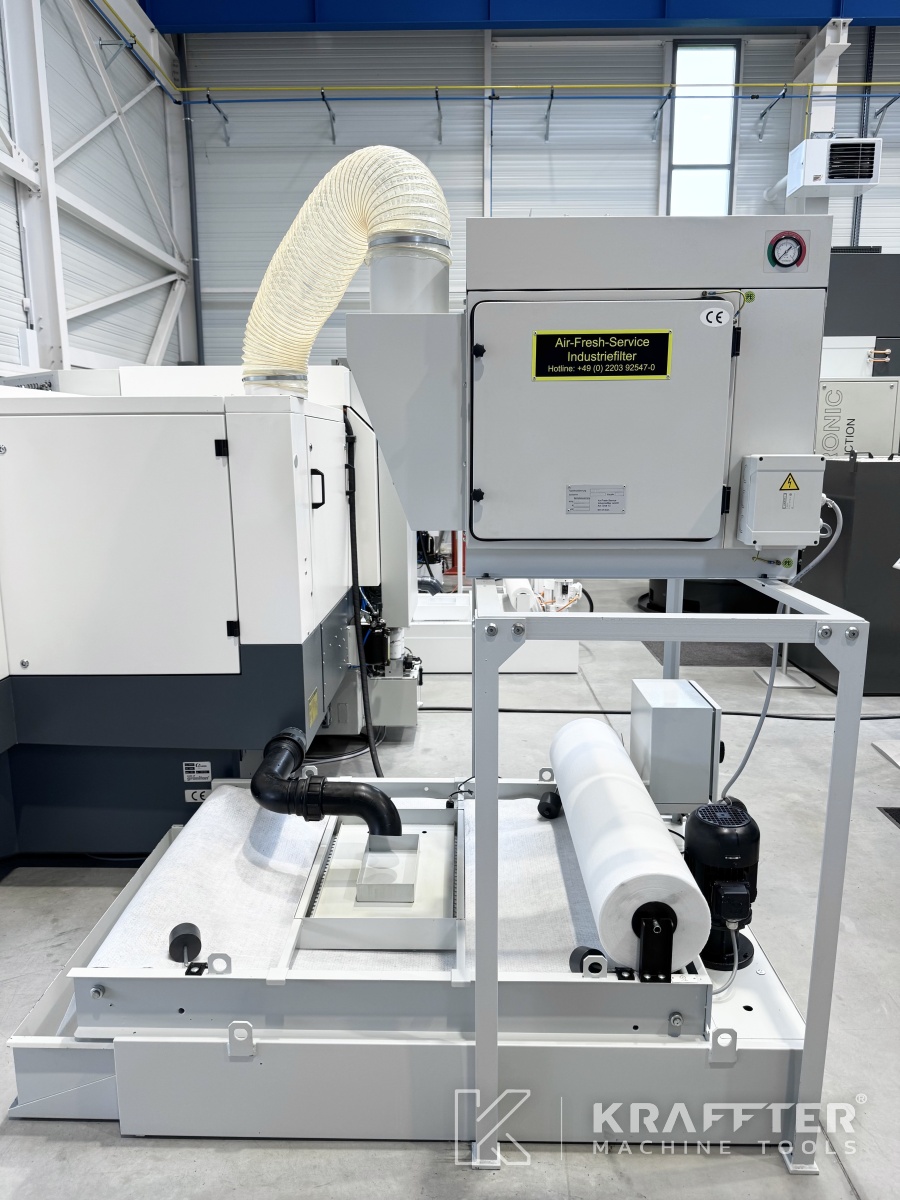

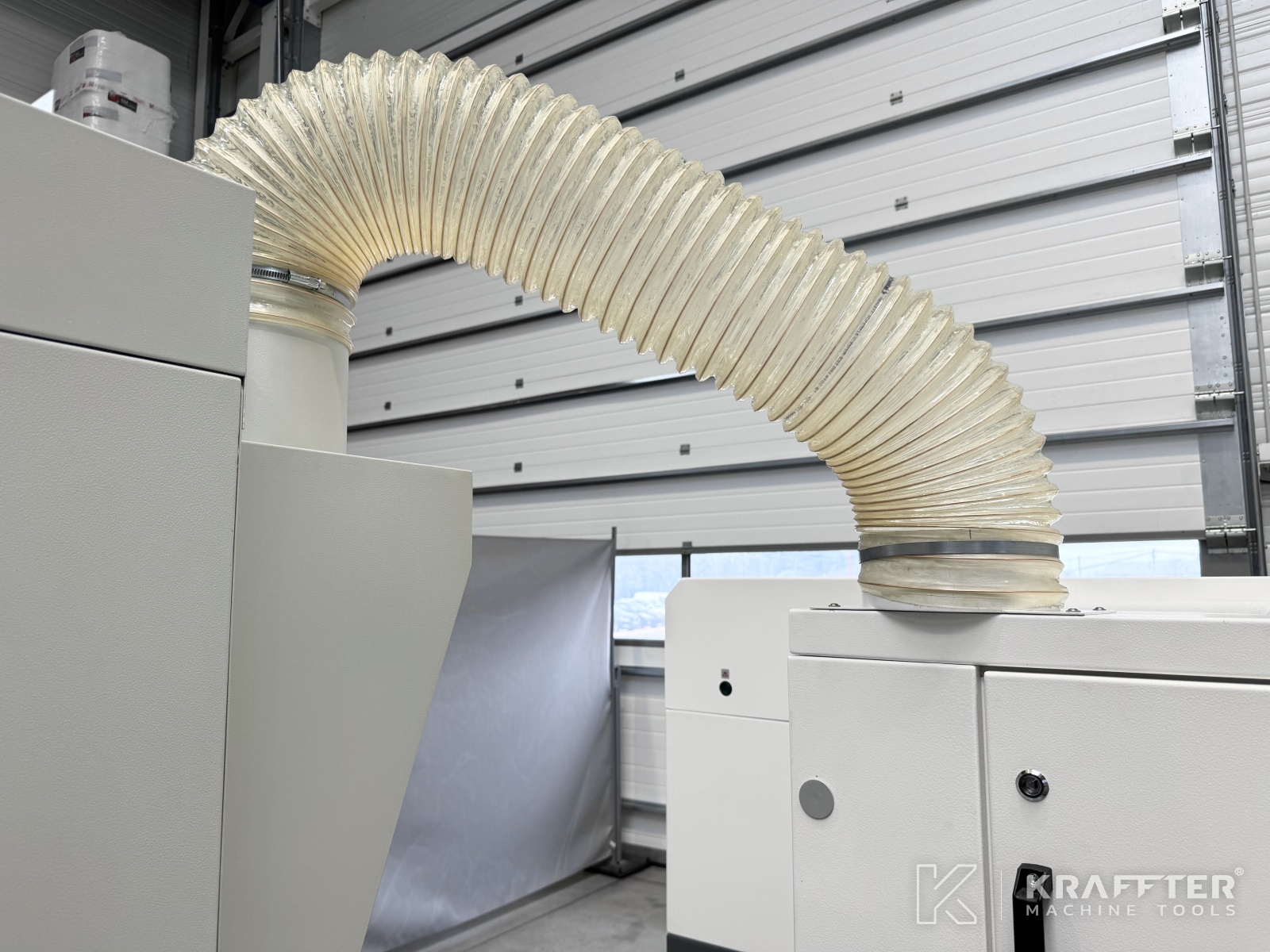

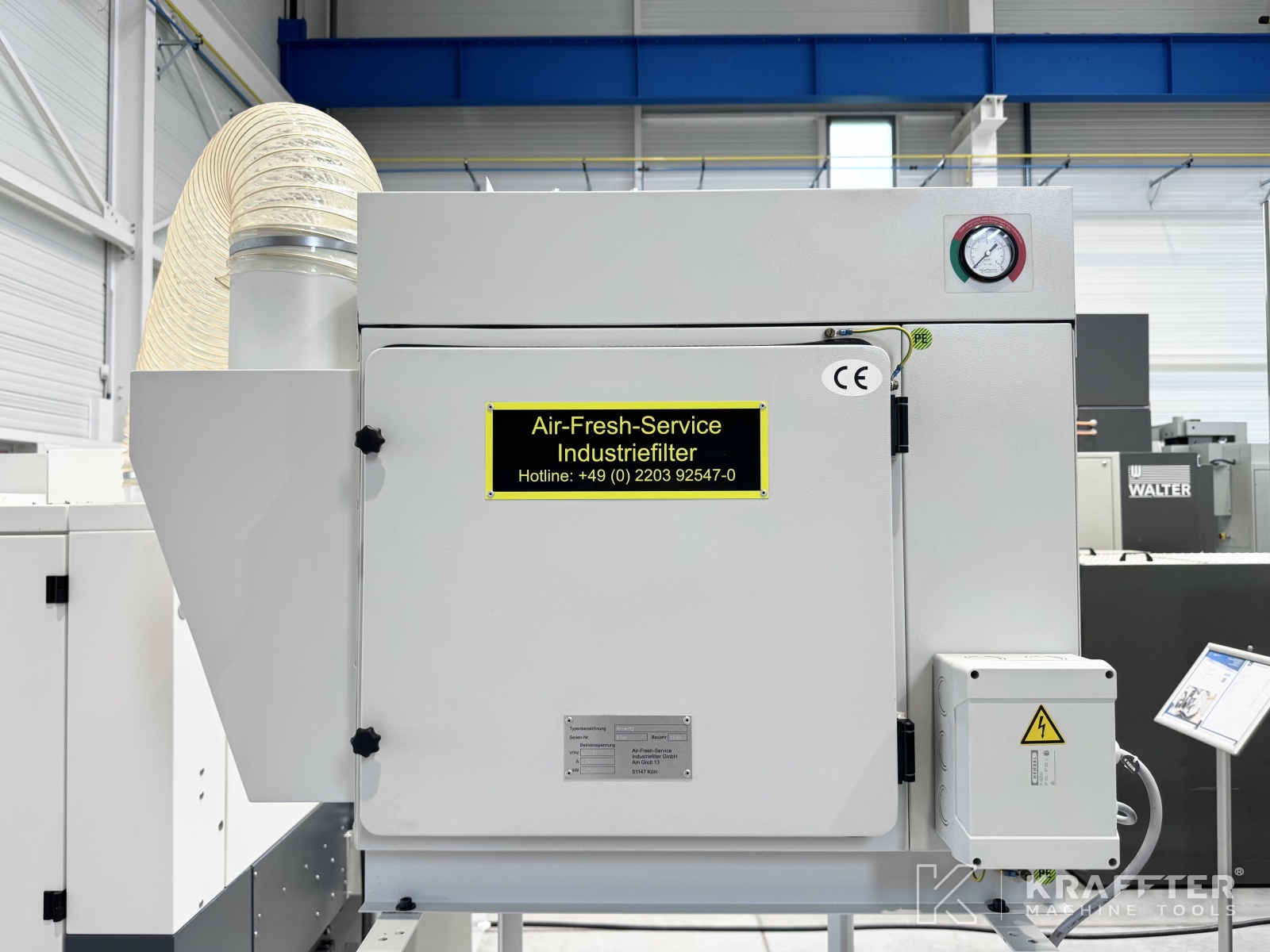

x1 mist extraction unit AIR-FRESH SERVICE type FMN-V12
-

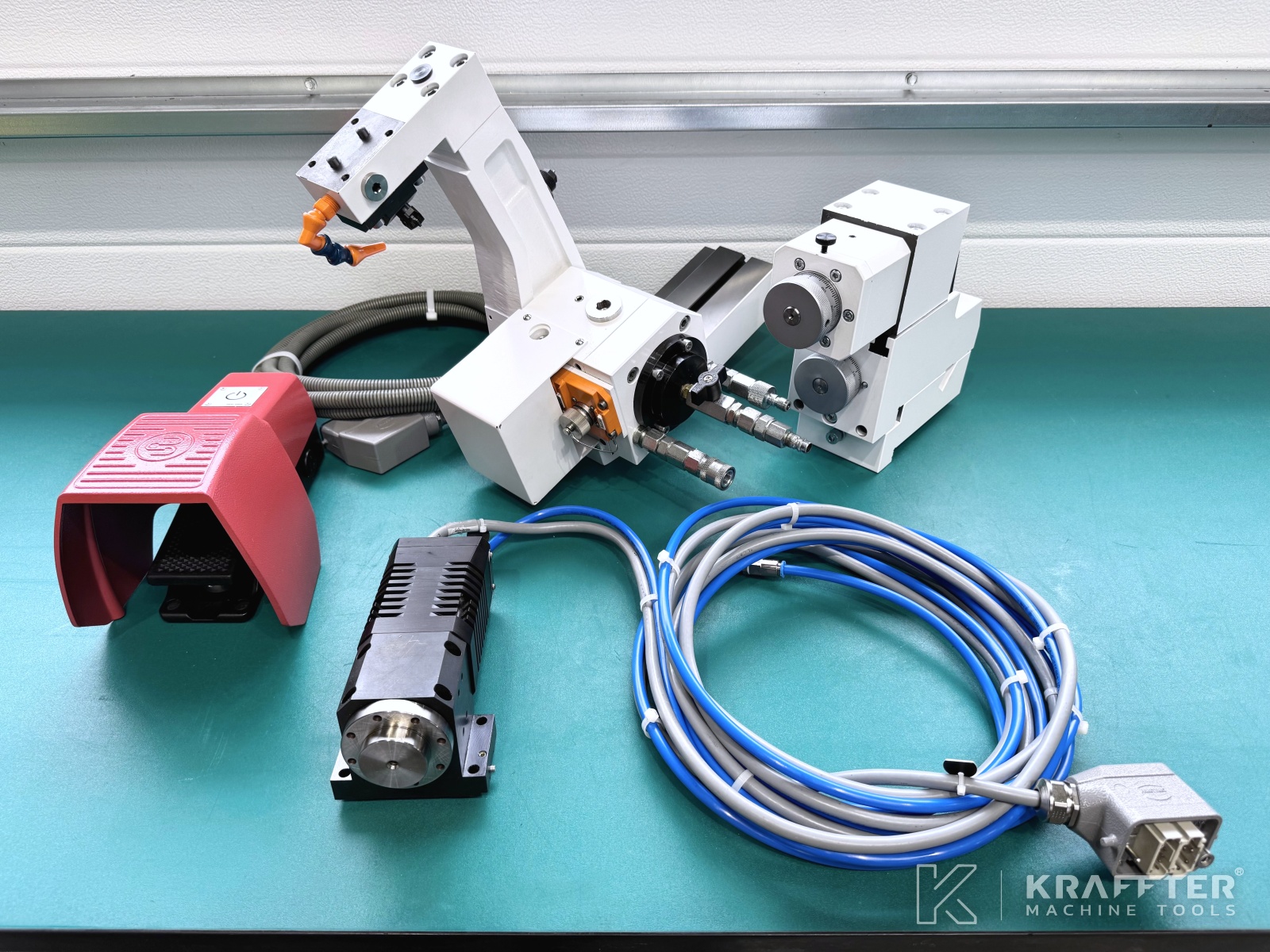

x1 foot pedal
-

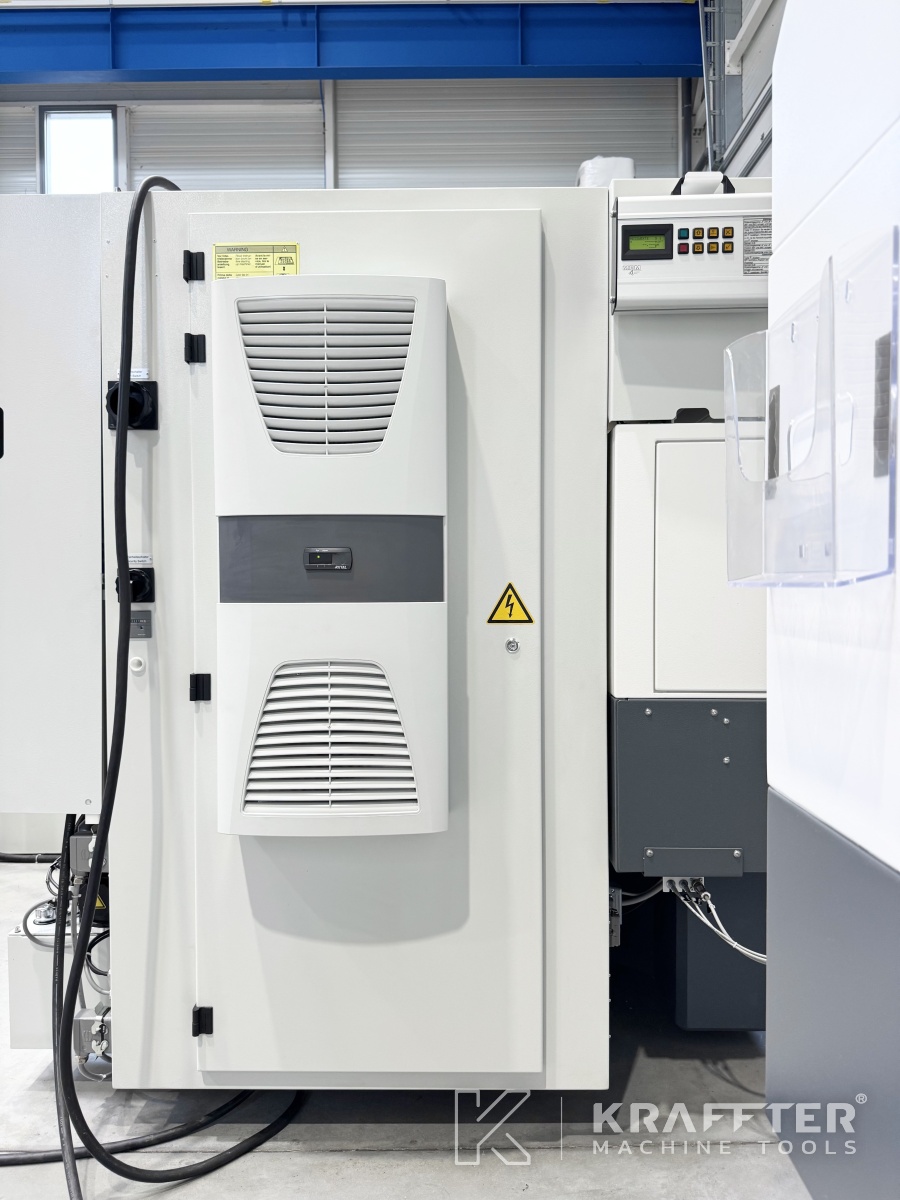

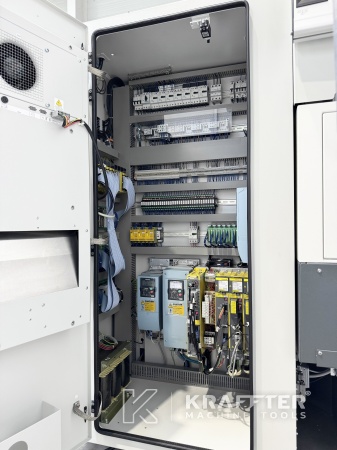

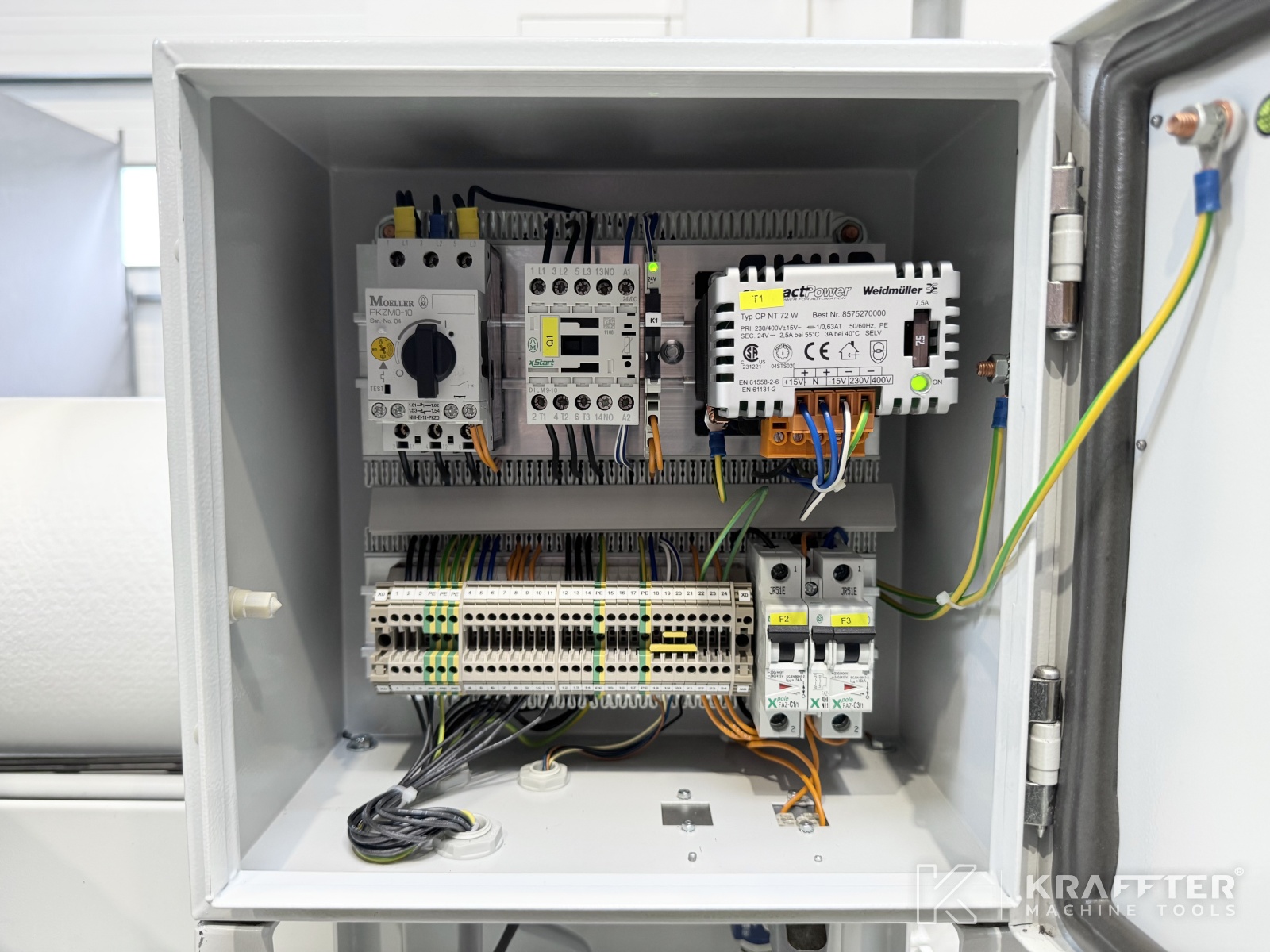

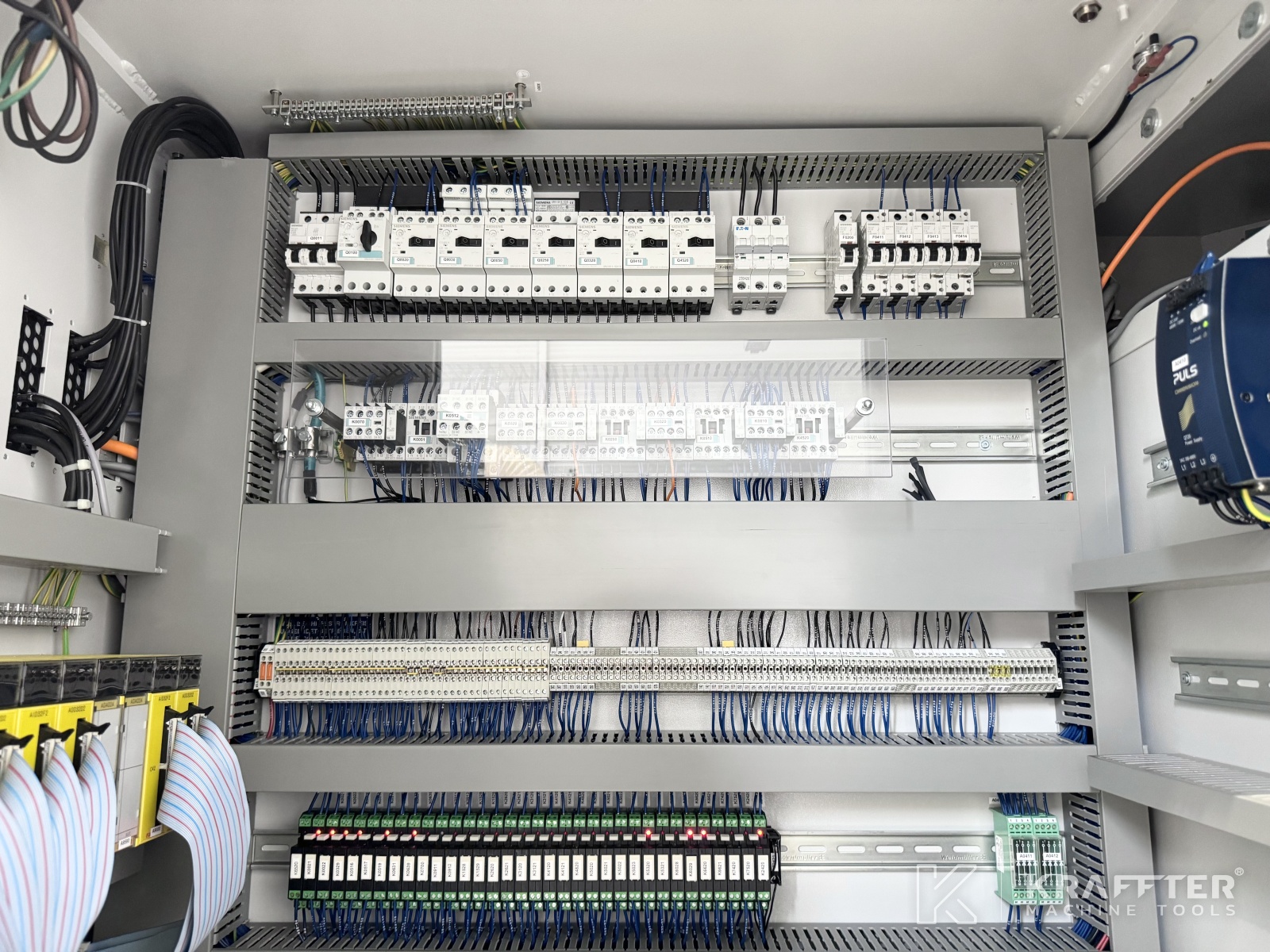

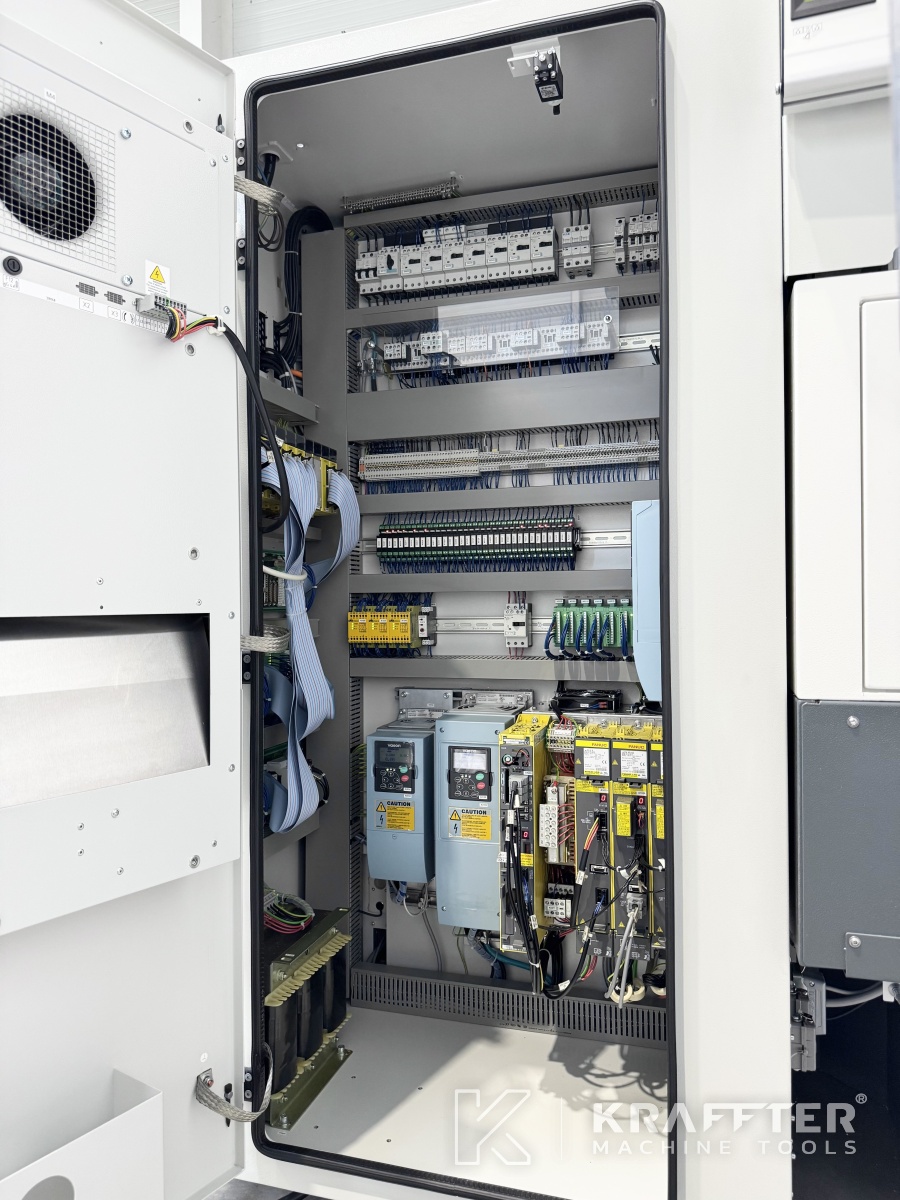

x1 electrical cabinet air conditioner
-
x4 external grinding wheel flanges
-

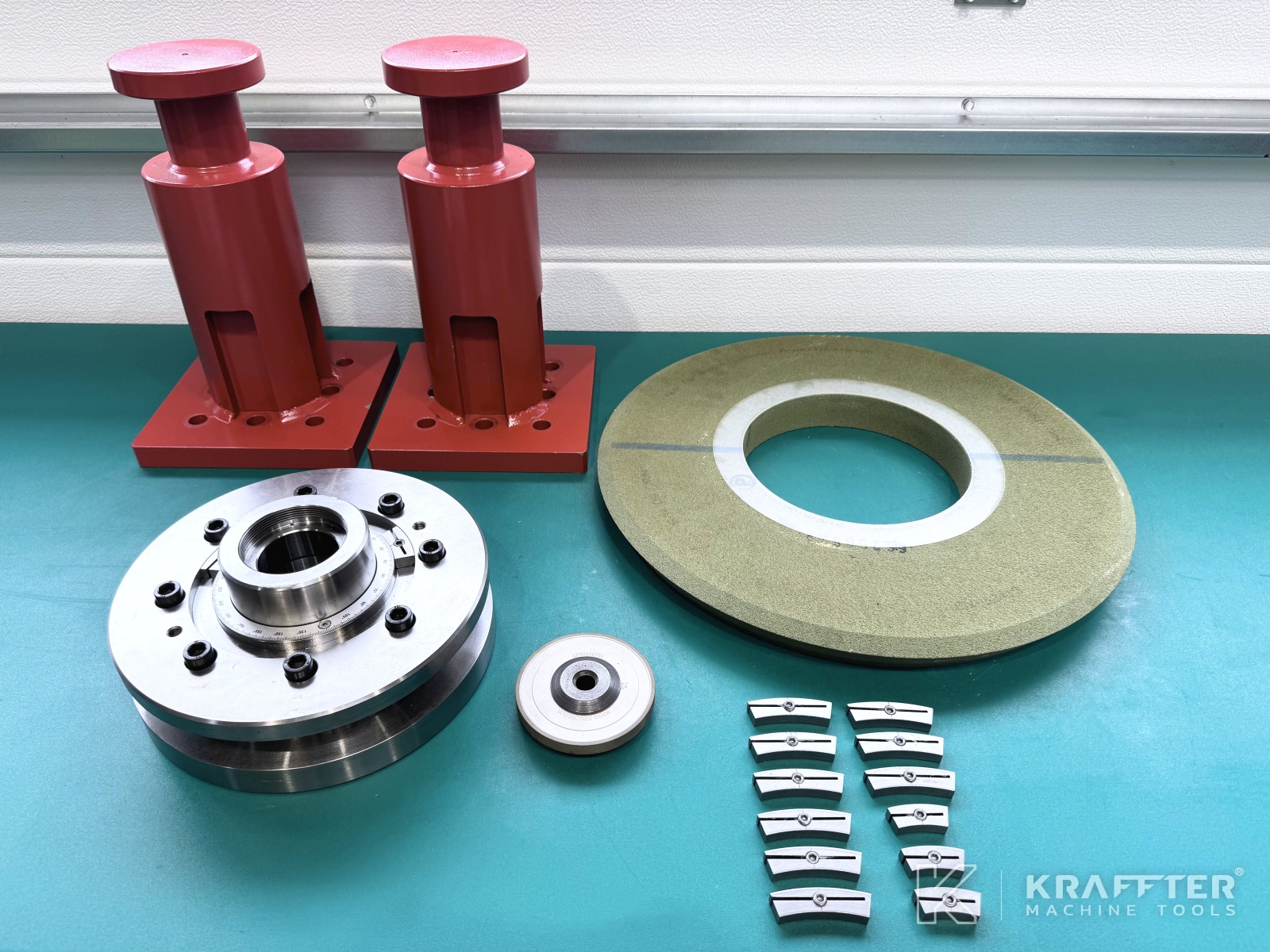

x1 set of lifting equipment
-
x1 axis bracket (for transportation of the machine)
-

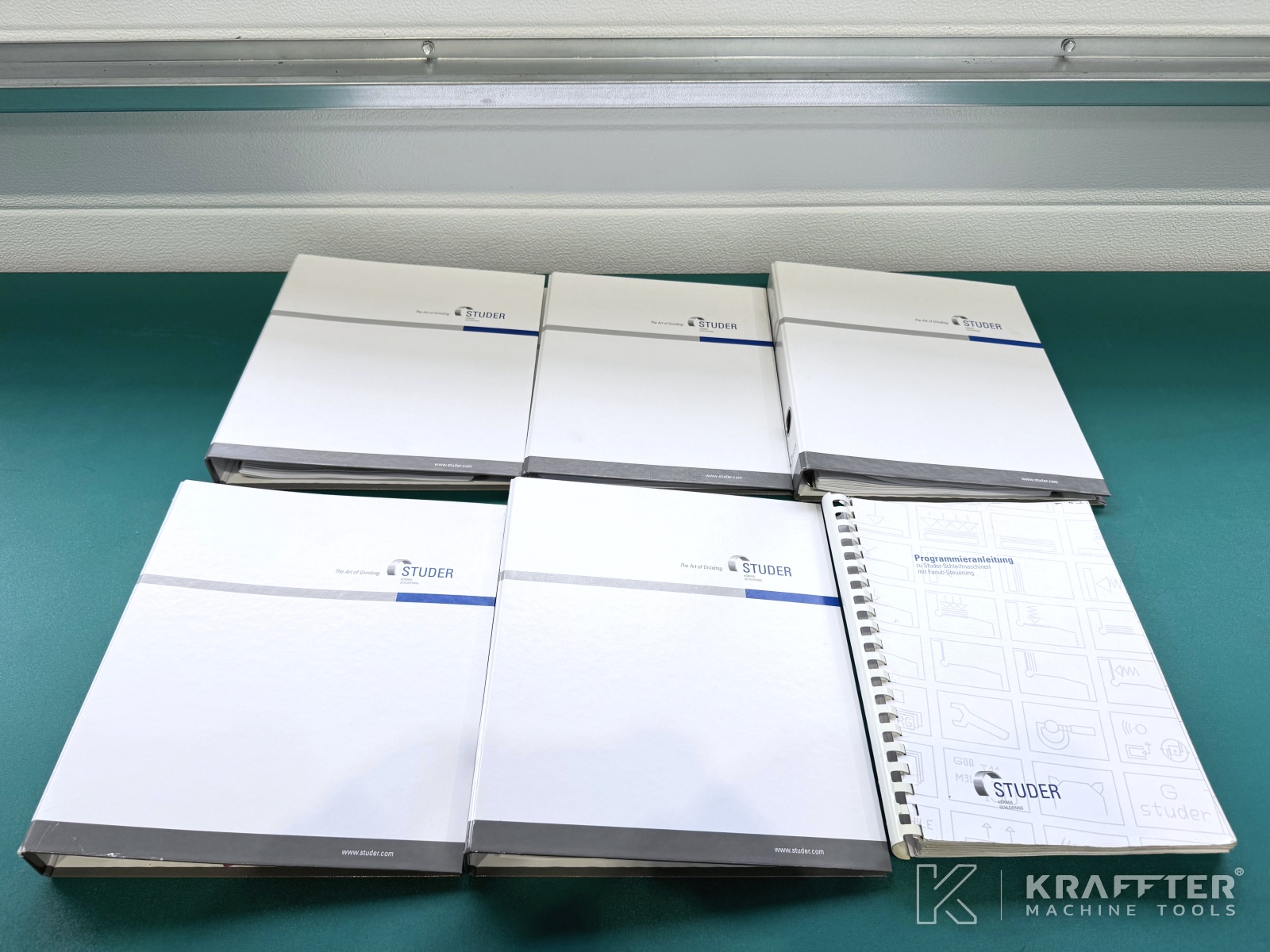

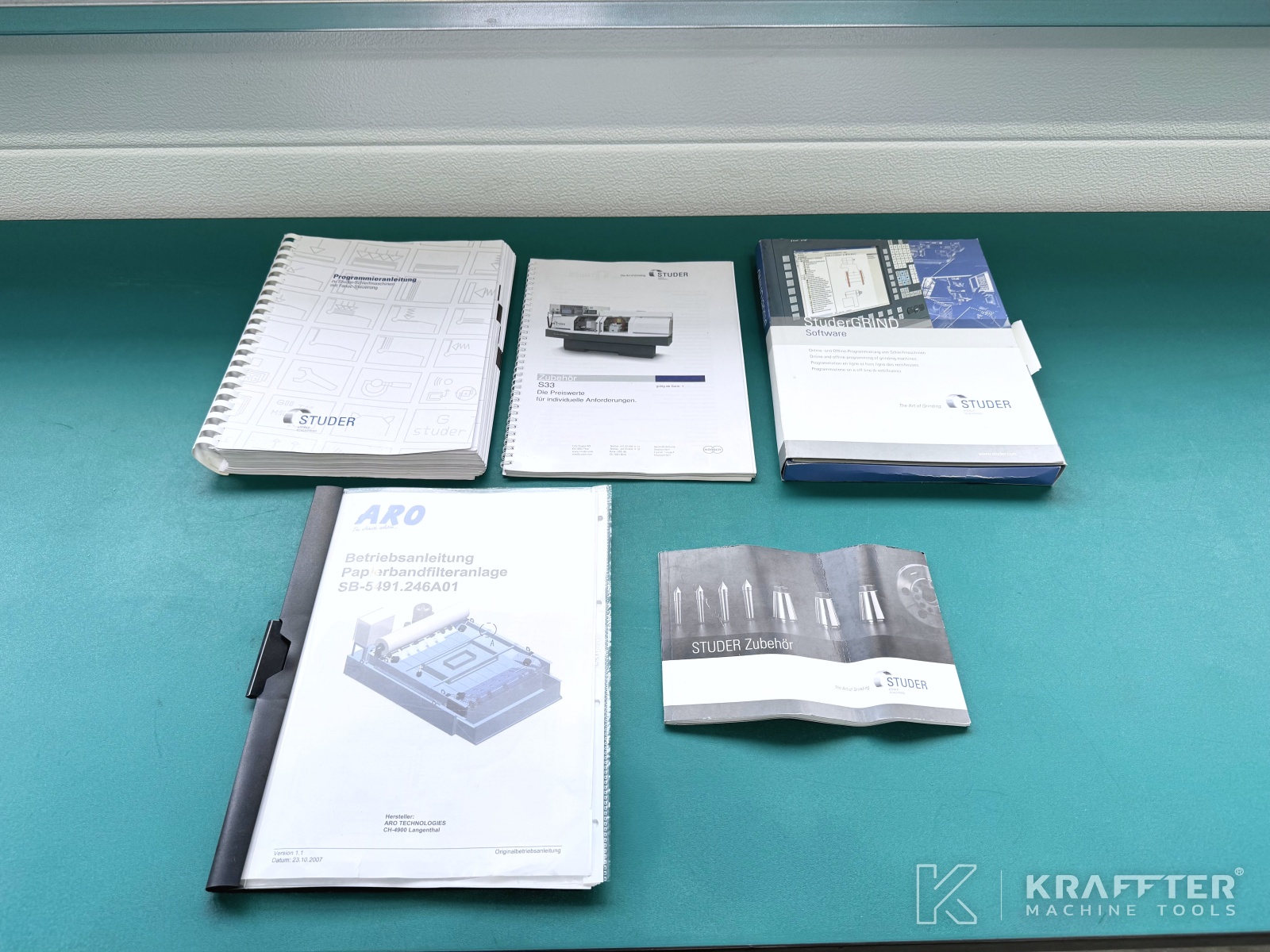

x1 set of operating manuals (French, English, and German)
